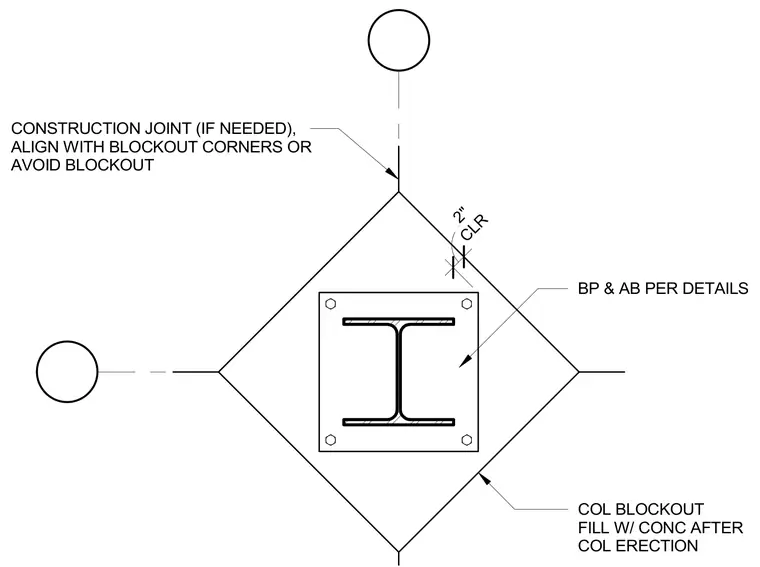

A structural steel column base plate and anchor bolt assembly is set within a concrete blockout. The blockout receives a concrete infill after column erection is complete. A two-inch clearance is maintained at the blockout perimeter. Construction joints are positioned to align with blockout corners or avoid the blockout entirely.
COL BLOCKOUT FILL W/ CONC AFTER COL ERECTION BP & AB PER DETAILS CLR 2" CONSTRUCTION JOINT (IF NEEDED), ALIGN WITH BLOCKOUT CORNERS OR AVOID BLOCKOUT
