Skewed beam connections frame into both columns and supporting beams at angles ranging from 30 to 60 degrees. Full-height shear tabs connect the skewed framing members, with plate thicknesses sized per the structural schedule and specific details. Welds are specified on three sides with clearance dimensions allowing up to three inches maximum. Notes direct the installer to alternate details when framing angles exceed sixty degrees.

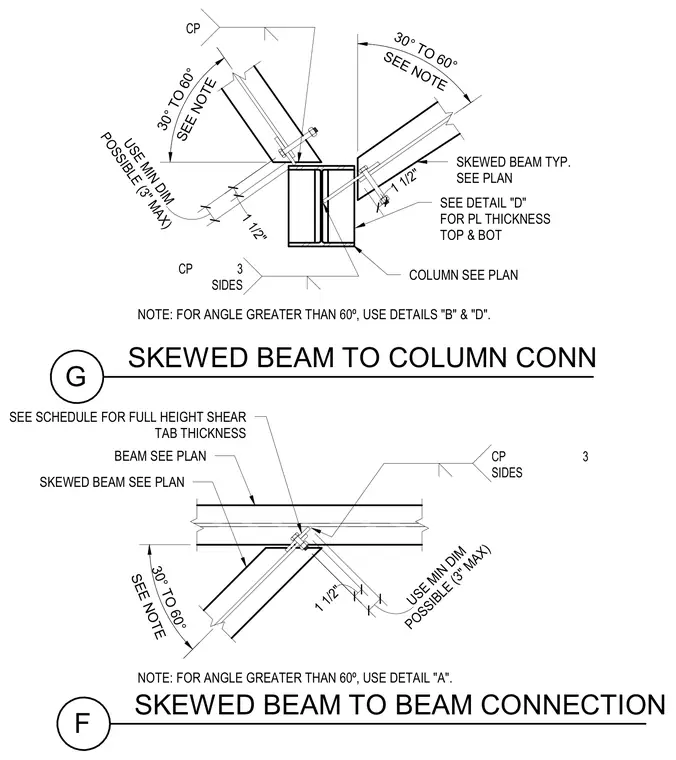

SKEWED BEAM TO BEAM CONNECTION F SKEWED BEAM SEE PLAN BEAM SEE PLAN 1 1/2" CP 3 SIDES POSSIBLE (3" MAX) USE MIN DIM SEE SCHEDULE FOR FULL HEIGHT SHEAR TAB THICKNESS SKEWED BEAM TO COLUMN CONN G 1 1/2" CP SKEWED BEAM TYP. SEE PLAN COLUMN SEE PLAN SEE DETAIL "D" FOR PL THICKNESS TOP & BOT 1 1/2" POSSIBLE (3" MAX) USE MIN DIM SEE NOTE 30° TO 60° SEE NOTE 30° TO 60° CP 3 SIDES NOTE: FOR ANGLE GREATER THAN 60º, USE DETAILS "B" & "D". NOTE: FOR ANGLE GREATER THAN 60º, USE DETAIL "A". SEE NOTE 30° TO 60°
