A structural steel column bears on a base plate sized per plan, with finished column ends and base plate conforming to AISC specifications. The assembly is anchored to concrete using four three-quarter-inch diameter anchor rods with a one-foot minimum embedment. Non-shrink grout fills the one-and-a-half-inch space beneath the base plate, while the contractor holds the base plate rigidly in place during grouting. Fillet welds connect the steel column to the base plate as detailed.

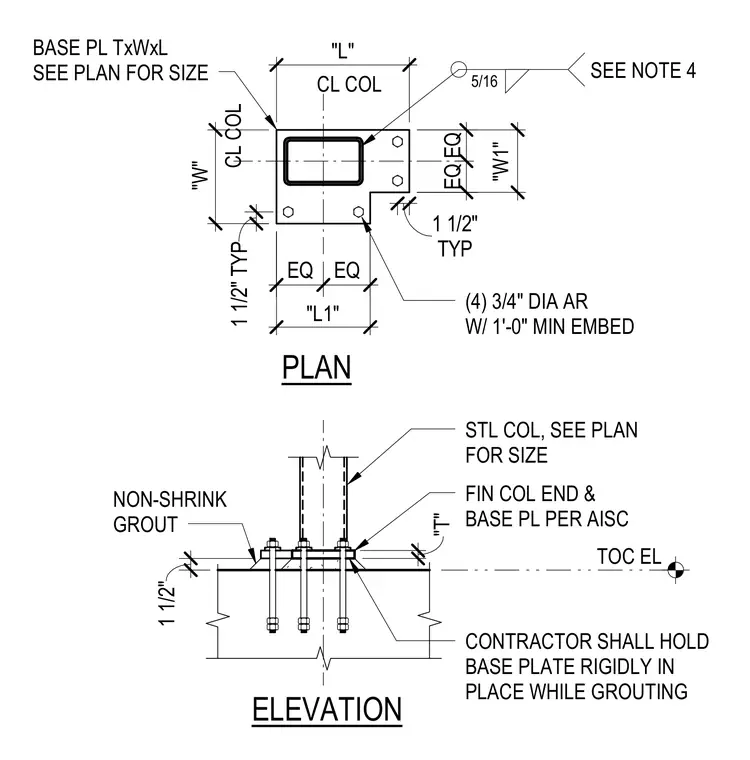

TOC EL (4) 3/4" DIA AR W/ 1'-0" MIN EMBED FIN COL END & BASE PL PER AISC NON-SHRINK GROUT SEE NOTE 4 5/16 ELEVATION PLAN STL COL, SEE PLAN FOR SIZE CL COL CONTRACTOR SHALL HOLD BASE PLATE RIGIDLY IN PLACE WHILE GROUTING BASE PL TxWxL SEE PLAN FOR SIZE CL COL 1" 17" 8" EQ EQ EQ EQ 12" 12" TYP 1 1/2" 1 1/2" TYP 1 1/2" "T" "L1" "L" "W" "W1"
