A wide-flange steel column is welded to a rectangular base plate using minimum welds per AISC typical at the flanges. Four anchor bolts are positioned at the corners with a 1 1/2-inch edge distance, while base plate dimensions "B", "N", and thickness "T" are sized per the column schedule. A 2-inch diameter grout hole is provided through the plate adjacent to the column web.

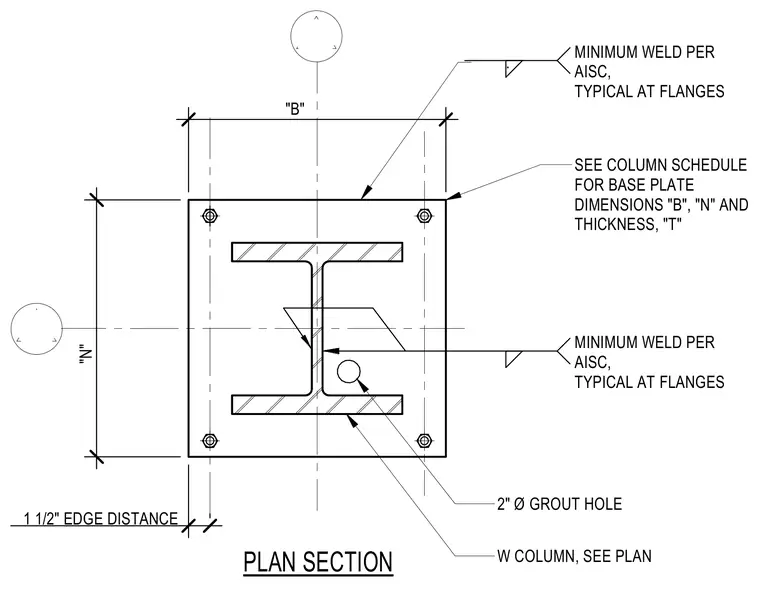

1 1/2" EDGE DISTANCE "B" "N" PLAN SECTION MINIMUM WELD PER AISC, TYPICAL AT FLANGES MINIMUM WELD PER AISC, TYPICAL AT FLANGES SEE COLUMN SCHEDULE FOR BASE PLATE DIMENSIONS "B", "N" AND THICKNESS, "T" 2" Ø GROUT HOLE W COLUMN, SEE PLAN .
