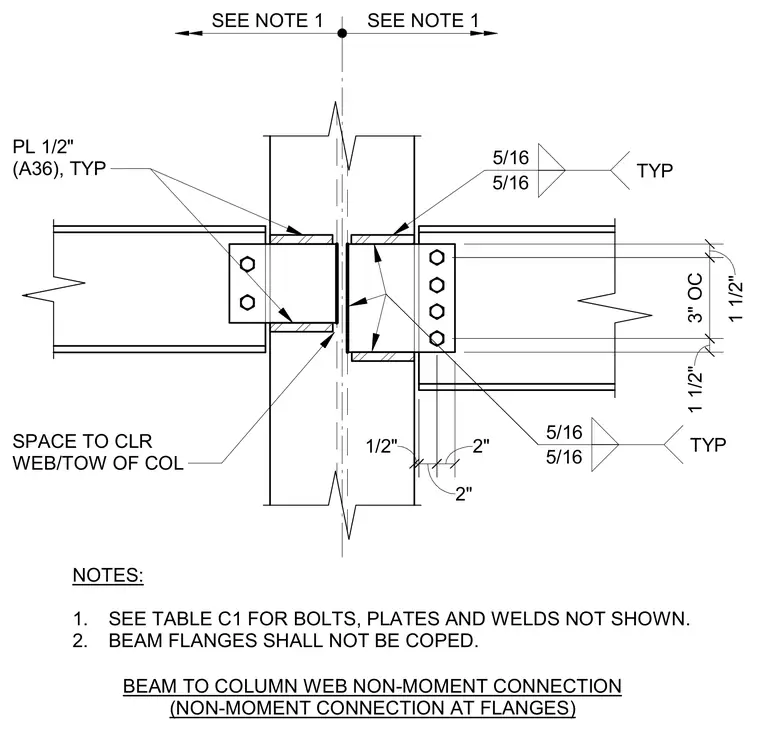

Steel beams frame into a column web with an unmoment connection detail where beam flanges remain uncoped. One-half-inch ASTM A36 plates attach to the assembly with typical five-sixteenth-inch fillet welds. Bolts, additional plates, and welds are sized per table C1. Clear spacing is maintained between the web and the toe of the column.
NOTES: 1. SEE TABLE C1 FOR BOLTS, PLATES AND WELDS NOT SHOWN. 2. BEAM FLANGES SHALL NOT BE COPED. BEAM TO COLUMN WEB NON-MOMENT CONNECTION (NON-MOMENT CONNECTION AT FLANGES) PL 1/2" (A36), TYP 1/2" 2" 2" 1 1/2" 3" OC 1 1/2" SPACE TO CLR WEB/TOW OF COL SEE NOTE 1 SEE NOTE 1 TYP 5/16 5/16 TYP 5/16 5/16
