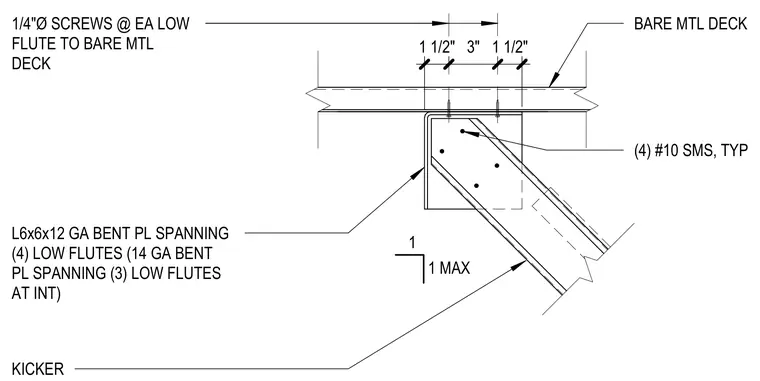

A structural steel kicker braces against a bare metal deck running parallel to the flutes. A twelve-gauge bent plate spanning four low flutes secures the connection, fastened to the deck with one-quarter inch diameter screws at each low flute. Four number ten sheet metal screws connect the kicker to the bent plate assembly.
1/4"Ø SCREWS @ EA LOW FLUTE TO BARE MTL DECK BARE MTL DECK (4) #10 SMS, TYP 1 MAX 1 L6x6x12 GA BENT PL SPANNING (4) LOW FLUTES (14 GA BENT PL SPANNING (3) LOW FLUTES AT INT) 1 1/2" 3" 1 1/2"
