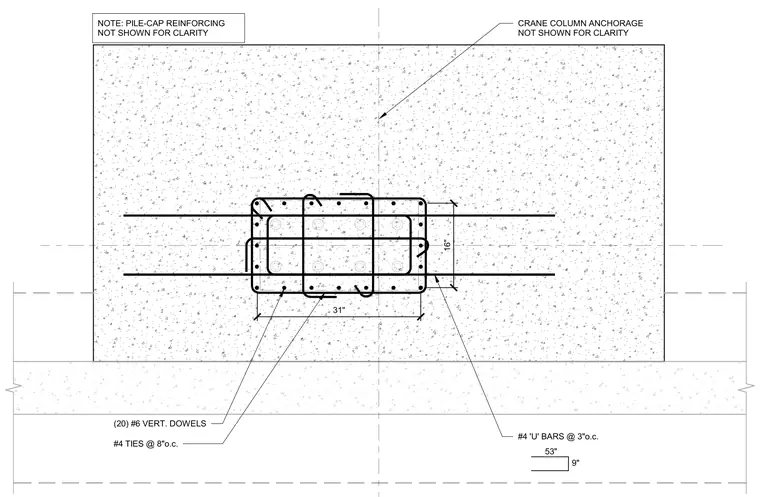

The anchor bolt pattern for a crane column is embedded within a concrete pile cap. The assembly features twenty number 6 vertical dowels arranged in a rectangular grid measuring 31 inches by 16 inches. The perimeter is reinforced with number 4 ties spaced at 8 inches on center. Additional confinement is provided by number 4 U-bars spaced at 3 inches on center. Crane column anchorage and pile cap reinforcing are omitted from the drawing for clarity.
