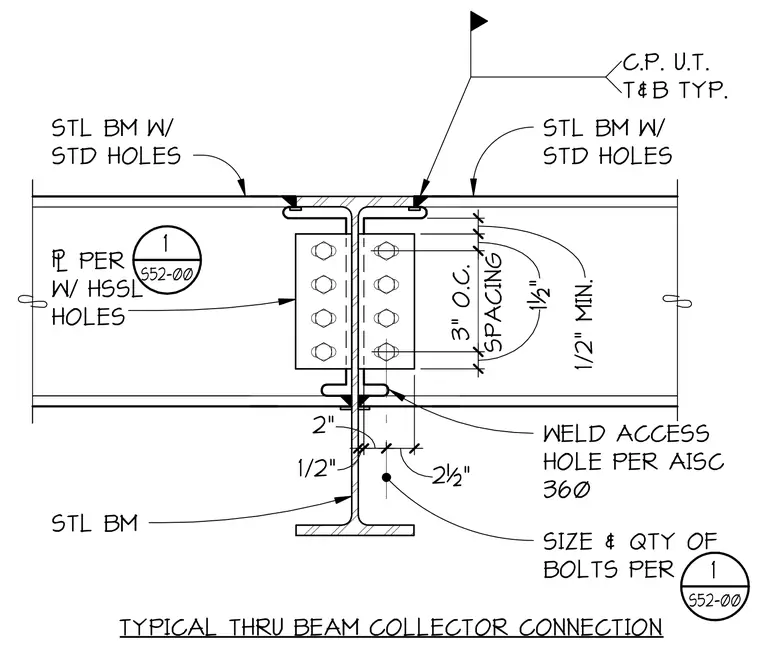

Steel beams with standard holes frame into a supporting steel beam member utilizing connection plates with HSSL holes. The connection incorporates a standard bolt size and quantity referenced per structural drawings, spaced at three inches on center with one-and-a-half-inch edge distances. A weld access hole is provided per AISC 360 standards, featuring specific geometric clearances and top-and-bottom welding.
STL BM W/ STD HOLES PER W/ HSSL HOLES 1 S52-00 STL BM W/ STD HOLES C.P. U.T. T&B TYP. SPACING 3" O.C. 1½" 1½" 1/2" MIN. WELD ACCESS HOLE PER AISC 360 STL BM 2½" 2" 1/2" SIZE & QTY OF BOLTS PER 1 S52-00 TYPICAL THRU BEAM COLLECTOR CONNECTION
