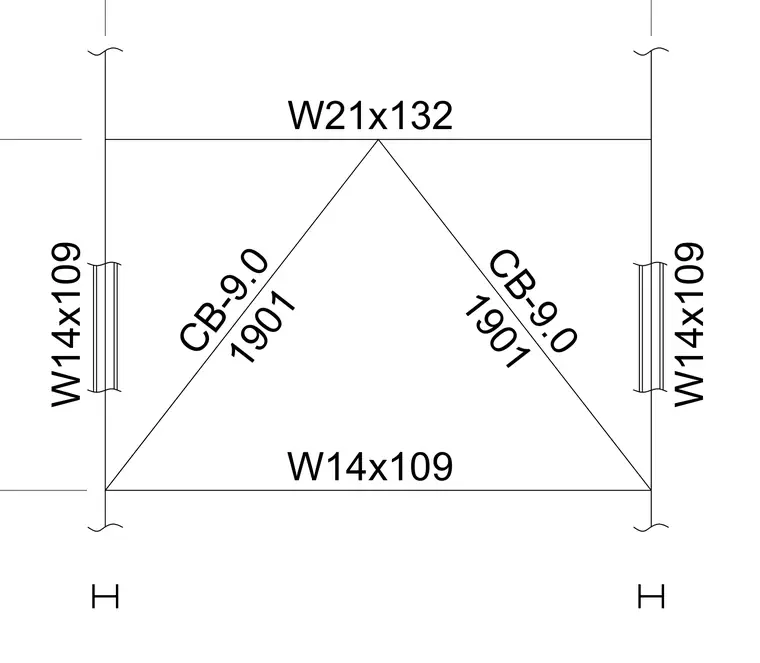

A wide flange W21x132 beam spans between vertical W14x109 columns, with a W14x109 bottom chord and two CB-9.0 diagonal braces forming a braced frame bay. The diagonal members connect at the nodes framed by the structural steel shapes.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
