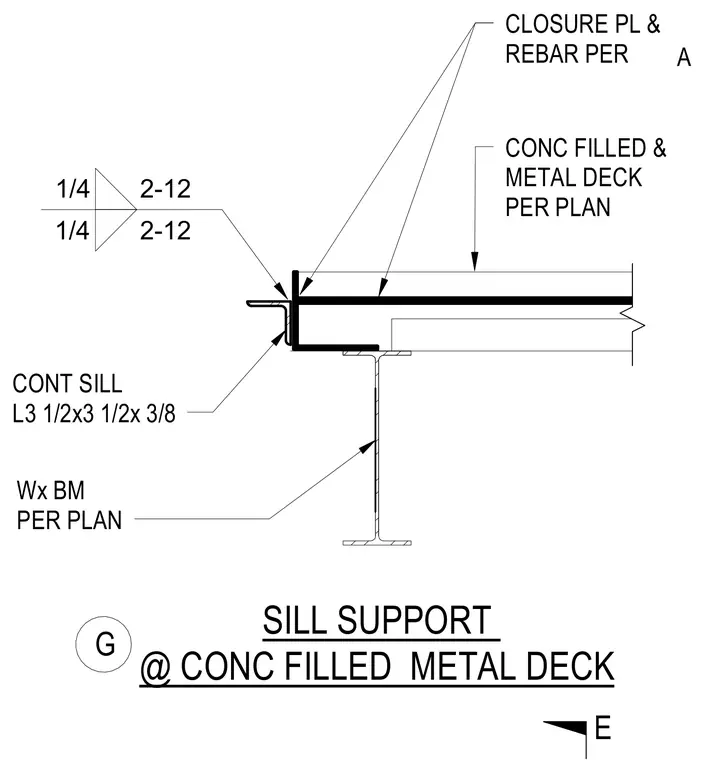

A continuous sill angle sized at L3 1/2 x 3 1/2 x 3/8 supports the edge conditions at a concrete-filled metal deck bearing on a wide flange beam sized per plan. A closure plate and reinforcing bar are positioned at the deck edge per structural requirements. The assembly is secured with quarter-inch fillet welds spaced at two inches by twelve inches on center.
1/4 2-12 1/4 2-12 CONT SILL L3 1/2x3 1/2x 3/8 Wx BM PER PLAN CONC FILLED & METAL DECK PER PLAN SILL SUPPORT @ CONC FILLED METAL DECK CLOSURE PL & REBAR PER E G A
