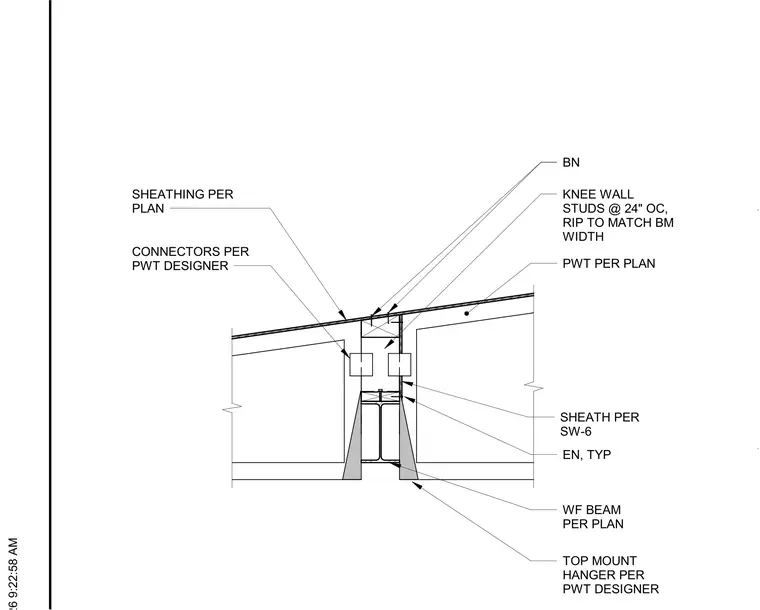

A wide flange beam rests on a knee wall assembly with studs spaced at 24 inches on center, ripped to match the beam width. Top-mount hangers connect the PWT beam to the supporting structure per PWT designer specifications. Sheathing is applied per plan and per SW-6 specifications. Connectors are installed per the PWT designer's requirements, with typical edge nailing provided throughout the assembly.
