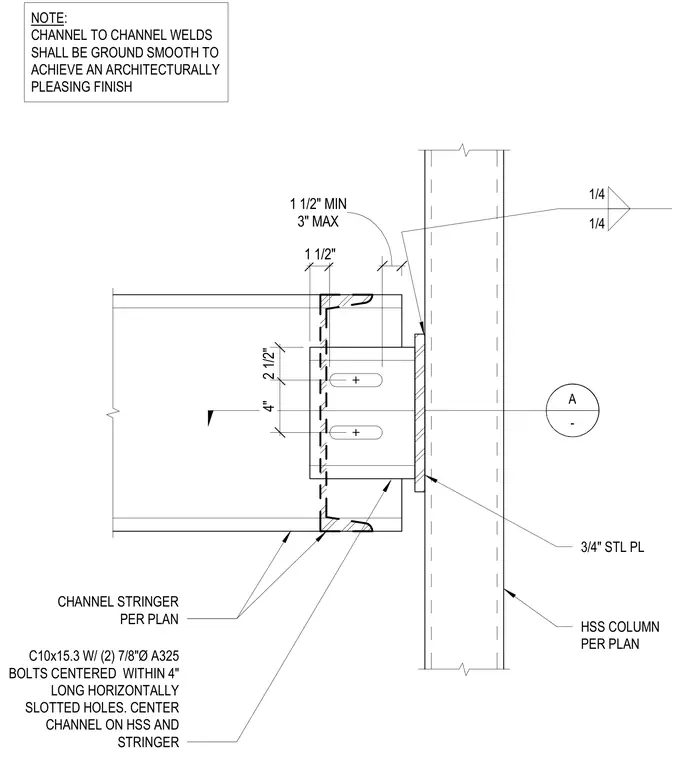

A C10x15.3 channel stringer is connected to a hollow structural section column via a three-quarter-inch steel plate. The connection utilizes two seven-eighth-inch diameter A325 bolts centered within four-inch long horizontally slotted holes to allow for adjustment. A one-and-a-half-inch minimum to three-inch maximum clearance is maintained between the channel and the column face. Channel-to-channel welds are specified to be ground smooth to achieve an architecturally pleasing finish.
CHANNEL STRINGER PER PLAN HSS COLUMN PER PLAN 1/4 1/4 NOTE: CHANNEL TO CHANNEL WELDS SHALL BE GROUND SMOOTH TO ACHIEVE AN ARCHITECTURALLY PLEASING FINISH 4" 2 1/2" 3" MAX 1 1/2" MIN 1 1/2" C10x15.3 W/ (2) 7/8"Ø A325 BOLTS CENTERED WITHIN 4" LONG HORIZONTALLY SLOTTED HOLES. CENTER CHANNEL ON HSS AND STRINGER A - 3/4" STL PL
