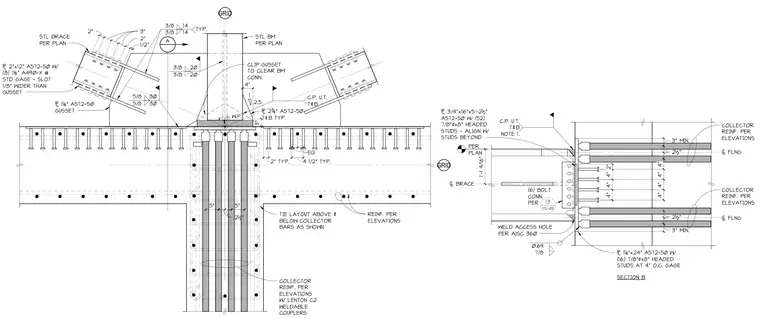

The assembly features a structural steel beam per plan intersecting with a steel brace, utilizing a 1-1/4 inch A572-50 gusset plate and a 2 inch by 12 inch A572-50 plate secured with eight 1/2 inch A490-X bolts at standard gage. The gusset is clipped to clear the beam connection and welded with 3/8 inch fillet welds. A 2-3/4 inch A572-50 top and bottom plate is welded with 3/8 inch fillet welds, complete with complete joint penetration and ultrasonic testing requirements. Collector reinforcement consists of a 3/4 inch by 16 inch by 5 foot 2-1/2 inch A572-50 plate with fifty-two 7/8 inch diameter by 8 inch headed studs aligned with studs beyond. Section B details a brace constructed from a 1-1/4 inch by 24 inch A572-50 plate with sixteen 7/8 inch diameter by 8 inch headed studs at 4 inches on center gage, connecting via a 6-bolt connection per detail 13/S52-00 and a weld access hole per AISC 360.
(6) BOLT CONN. PER 13 S52-00 WELD ACCESS HOLE PER AISC 360 7/8 0.69 C.P. U.T. T&B NOTE 1. COLLECTOR REINF. PER ELEVATIONS - 3/4"x16"x5'-2½" A572-50 W/ (52) 7/8"0x8" HEADED STUDS - ALIGN W/ STUDS BEYOND COLLECTOR REINF. PER ELEVATIONS SECTION B FLNG FLNG 4" 4" 4" 4" 2½" 3" MIN. 2 1 / 2" 2 1 / 2" PER PLAN GRID A 5" 5" 2 1 / 2" 2 1 / 2" TIE LAYOUT ABOVE & BELOW COLLECTOR BARS AS SHOWN REINF. PER ELEVATIONS TEXT COLLECTOR REINF. PER ELEVATIONS W/ LENTON C2 WELDABLE COUPLERS EQ EQ 3" 2" 2" 1/2" 3/8 20 3/8 20 GRID 2½" 2" TYP. 4 1/2" TYP. 4" 1 2.5 2" 3" 3" 3" 2" 1" 5/8 30 5/8 30 STL BM PER PLAN C.P. U.T. T&B - 2¾" A572-50 T&B TYP. 3/8 14 3/8 14 TYP. - 1¼" A572-50 GUSSET - 2"x12" A572-50 W/ (8) 12" A490-X @ STD GAGE - SLOT 1/8" WIDER THAN GUSSET STL BRACE PER PLAN CLIP GUSSET TO CLEAR BM CONN. 2 1 / 2" 2 1 / 2" 2½" 4" 4" 4" 2" 3" 3" MIN. 3" 1'-1 9/16" BRACE - 1¼"x24" A572-50 W/ (16) 7/8"0x8" HEADED STUDS AT 4" O.C. GAGE W.P. 3"
