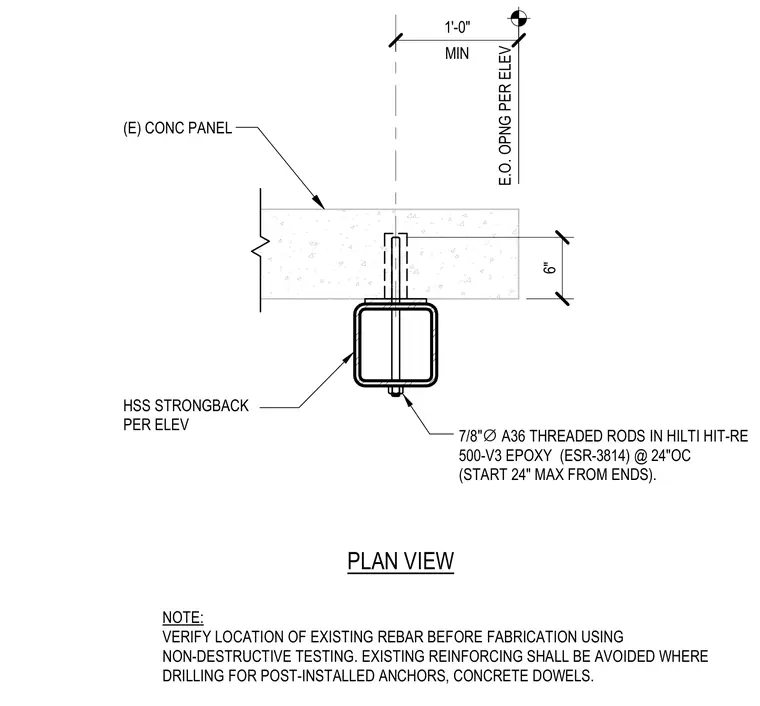

An HSS strongback is anchored to an existing concrete panel using seven-eighths-inch-diameter A36 threaded rods set in Hilti HIT-RE 500-V3 epoxy at twenty-four inches on center, starting a maximum of twenty-four inches from the ends. Non-destructive testing must be performed to verify the location of existing rebar before fabrication so that reinforcing is avoided when drilling for post-installed anchors and concrete dowels.
PLAN VIEW (E) CONC PANEL 7/8" ∅ A36 THREADED RODS IN HILTI HIT-RE 500-V3 EPOXY (ESR-3814) @ 24"OC (START 24" MAX FROM ENDS). HSS STRONGBACK PER ELEV NOTE: VERIFY LOCATION OF EXISTING REBAR BEFORE FABRICATION USING NON-DESTRUCTIVE TESTING. EXISTING REINFORCING SHALL BE AVOIDED WHERE DRILLING FOR POST-INSTALLED ANCHORS, CONCRETE DOWELS. 6" E.O. OPNG PER ELEV MIN 1'-0"
