Structural · S-K64GC

Wide-Flange Beam to HSS Column Shear Plate Connection

Materials

Steel

Elements

Beams Connections / Plates Reinforcing

Connections

HSS Connection

About this detail

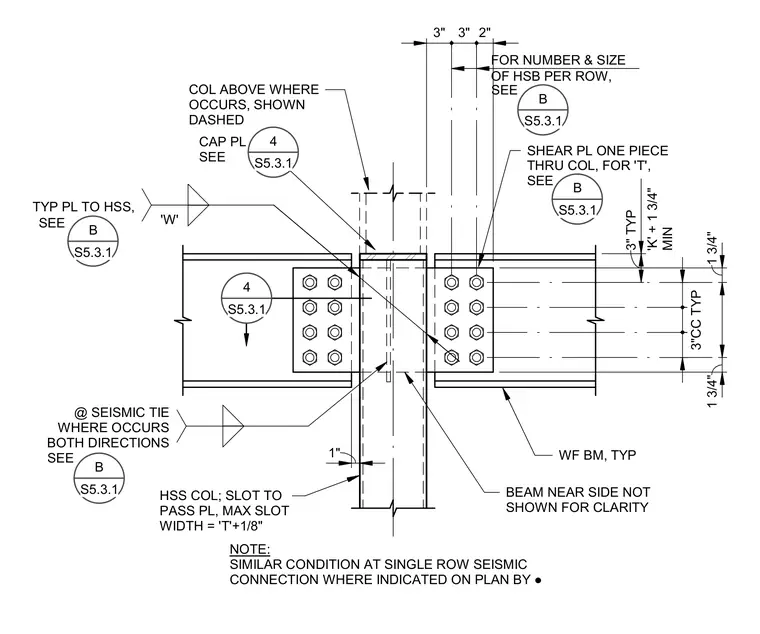

A continuous shear plate passes horizontally through a slotted hollow structural section column to connect wide-flange beams on opposite sides. The column features a maximum slot width equal to the beam web thickness plus one-eighth inch, with a cap plate welded at the top. High-strength bolts fasten each beam web to the continuous shear plate using symmetrical vertical and horizontal spacing. Fillet welds secure the shear plate to the column walls, and a one-inch gap is maintained at seismic tie locations where required in both directions. The column above is shown dashed to indicate continuity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
