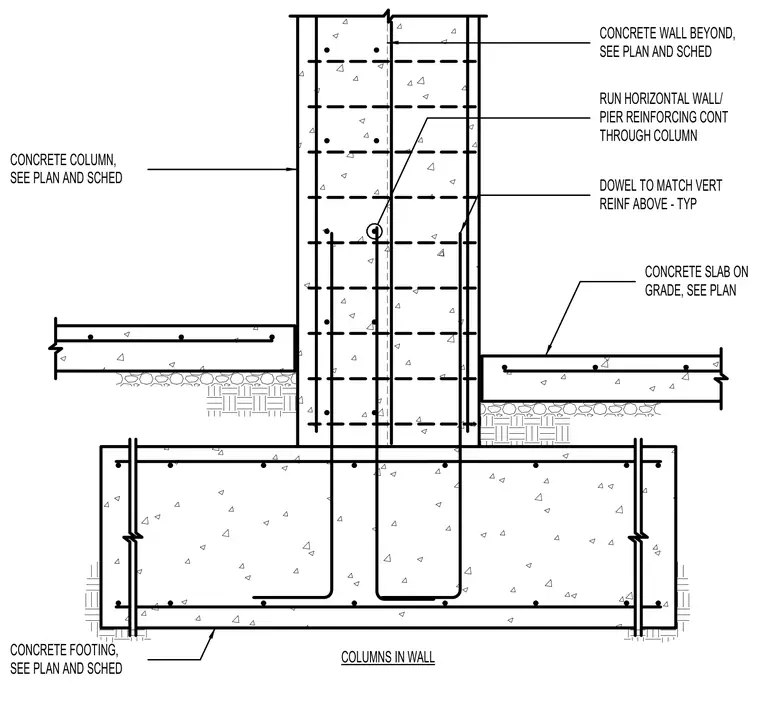

A reinforced concrete column bears on a concrete footing, with vertical reinforcing dowels matching the column above anchored into the footing. Horizontal wall and pier reinforcing runs continuously through the column core. A concrete slab on grade abuts the column pier above the footing. Sizing and reinforcement details are coordinated per the structural plan and schedule.
DOWEL TO MATCH VERT REINF ABOVE - TYP CONCRETE COLUMN, SEE PLAN AND SCHED CONCRETE WALL BEYOND, SEE PLAN AND SCHED RUN HORIZONTAL WALL/ PIER REINFORCING CONT THROUGH COLUMN CONCRETE FOOTING, SEE PLAN AND SCHED COLUMNS IN WALL CONCRETE SLAB ON GRADE, SEE PLAN
