Typical Steel Joist Bearing at Masonry Walls

Materials

Elements

Beams Walls Facades / Cladding Roofs Decks Arches Connections / Plates Reinforcing

About this detail

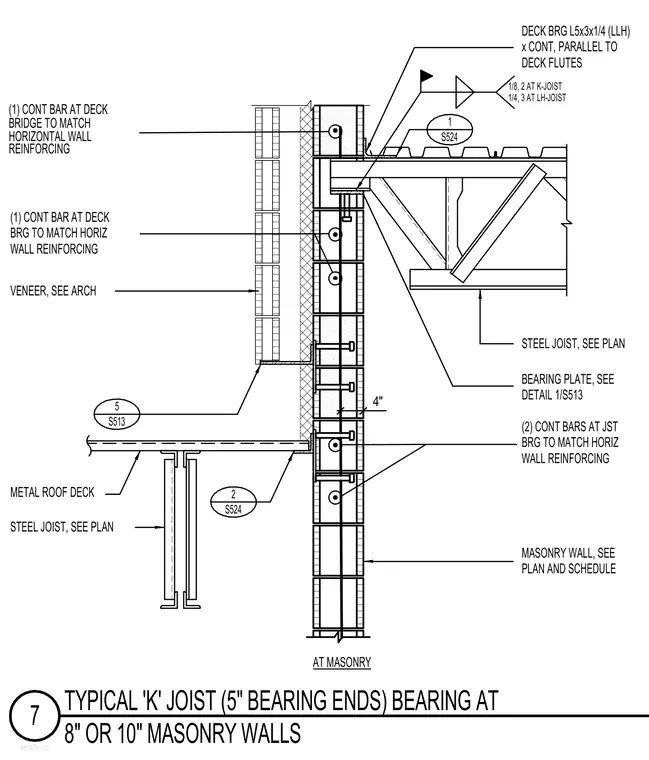

A standard open-web steel K-joist with a five-inch bearing end is supported on an eight or ten-inch masonry wall. A continuous deck bearing angle sized L5x3x1/4 for long-span joists runs parallel to the deck flutes, welded with a one-eighth fillet weld for K-joists or a one-quarter fillet weld for LH-joists. The masonry wall includes continuous reinforcing bars at the deck and joist bearing matching the horizontal wall reinforcing, along with a bearing plate detailed separately. Metal roof deck and veneer finishes are coordinated per plan and architectural drawings.
