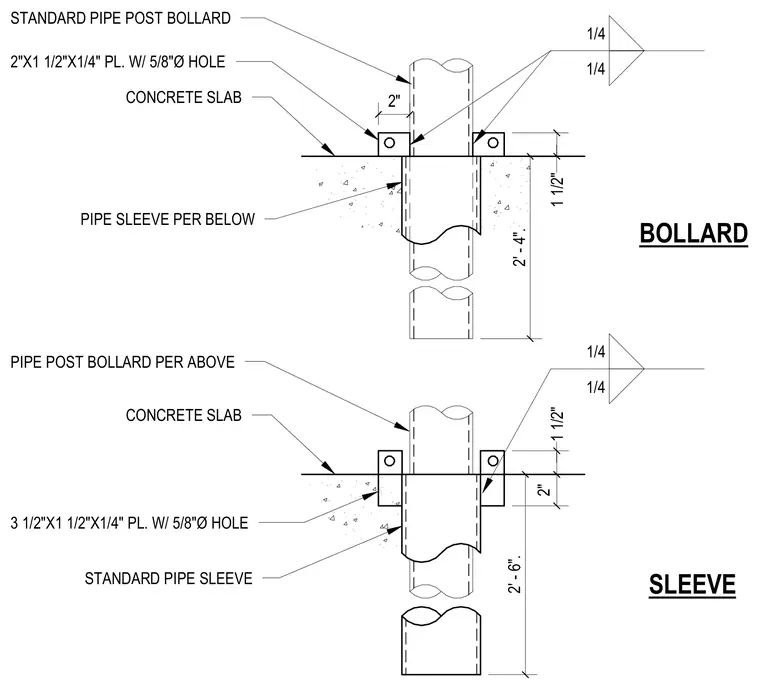

A standard pipe post bollard passes through a concrete slab and is housed within a pipe sleeve. The assembly features welded connections with fillet welds indicated by quarter-inch symbols. Plates measuring two inches by one and a half inches by a quarter inch with five-eighths inch diameter holes are detailed at the top condition, alongside a variant utilizing a three and a half inch by one and a half inch by a quarter inch plate with a five-eighths inch diameter hole. Depths for the sleeve embedment measure two feet four inches and two feet six inches respectively.
2" 1 1/2" 1/4 1/4 STANDARD PIPE POST BOLLARD 2"X1 1/2"X1/4" PL. W/ 5/8"Ø HOLE CONCRETE SLAB PIPE SLEEVE PER BELOW 2" 1 1/2" 1/4 1/4 PIPE POST BOLLARD PER ABOVE 3 1/2"X1 1/2"X1/4" PL. W/ 5/8"Ø HOLE CONCRETE SLAB STANDARD PIPE SLEEVE 2' - 4". 2' - 6". BOLLARD SLEEVE
