Long-span and deep long-span steel joists frame into a structural steel column utilizing WT-shapes and connection plates. A WT 7x21.5 by six and a half inches long supports LH joists, while a WT 10.5x27.5 by six and a half inches long supports DLH joists with bolting per general structural notes. A three-quarter-inch thick plate sized to the column depth plus one inch is welded to the column flange. Fillet welds of one-quarter-inch size are applied at exterior columns and where struts are called out on the plan.

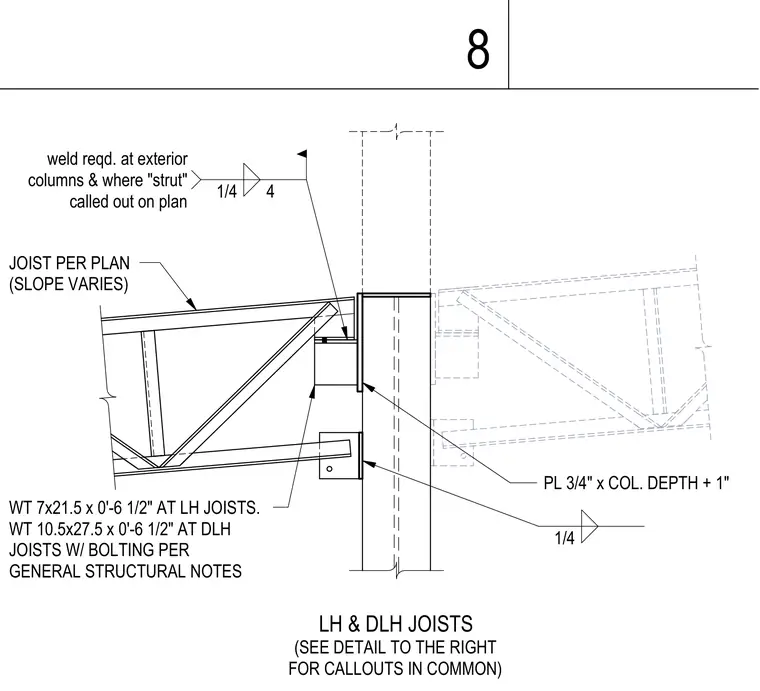

WT 7x21.5 x 0'-6 1/2" AT LH JOISTS. WT 10.5x27.5 x 0'-6 1/2" AT DLH JOISTS W/ BOLTING PER GENERAL STRUCTURAL NOTES JOIST PER PLAN (SLOPE VARIES) PL 3/4" x COL. DEPTH + 1" 1/4 LH & DLH JOISTS (SEE DETAIL TO THE RIGHT FOR CALLOUTS IN COMMON) 1/4 4 weld reqd. at exterior columns & where "strut" called out on plan 8
