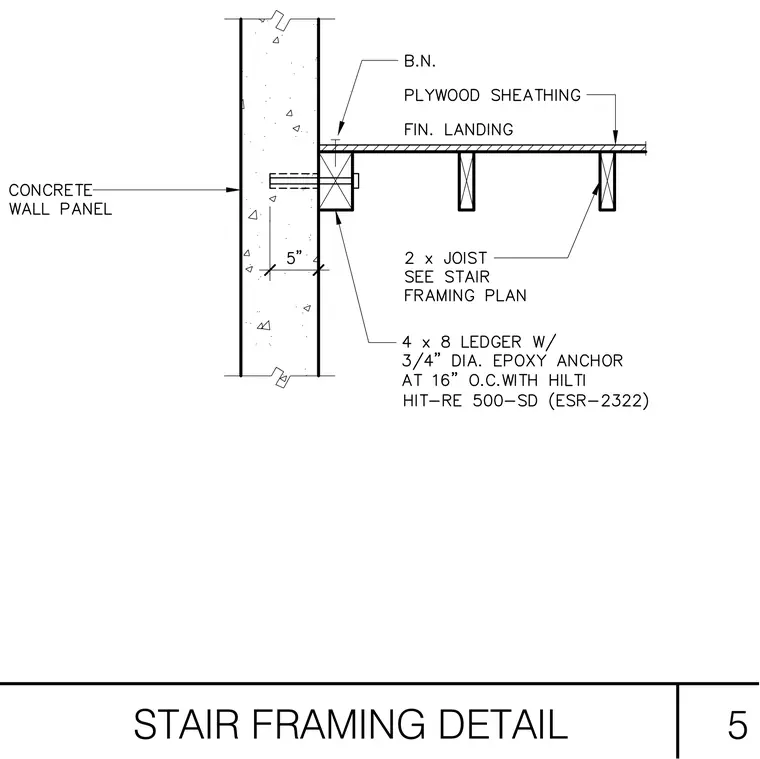

A four-by-eight wood ledger is secured to a five-inch concrete wall panel using three-quarter-inch diameter epoxy anchors at sixteen inches on center with Hilti HIT-RE 500-SD. The landing framing consists of two-by joists supporting plywood sheathing and finished landing flooring, with joist spacing sized per the stair framing plan.
