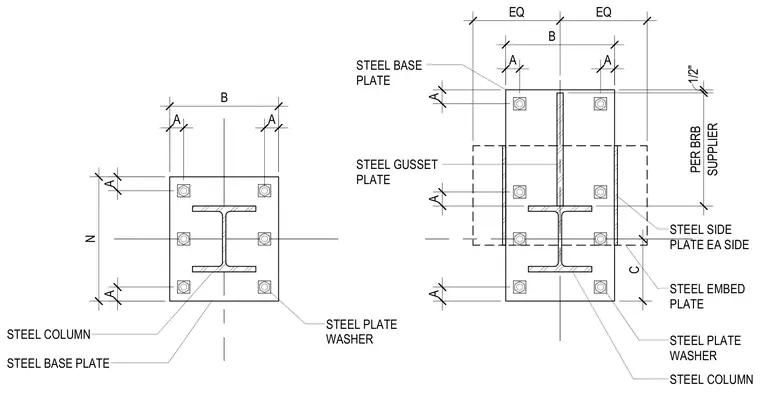

This structural detail shows a steel column anchored to a steel base plate with steel plate washers, accompanied by a gusset plate and steel side plates on each side configured per the buckling-restrained brace supplier. The base plate assembly incorporates specified dimensions for anchor bolt spacing and embedment plates.
STEEL COLUMN STEEL BASE PLATE A STEEL EMBED PLATE STEEL SIDE PLATE EA SIDE 1/2" SUPPLIER PER BRB B STEEL PLATE WASHER A STEEL BASE PLATE STEEL PLATE WASHER STEEL COLUMN B N A A A A A A A EQ EQ STEEL GUSSET PLATE C
