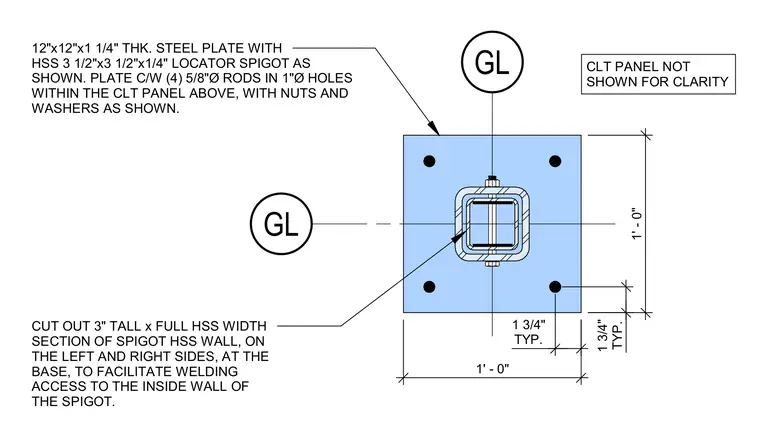

A 12-inch by 12-inch by 1 1/4-inch thick steel plate features a centered 3 1/2-inch by 3 1/2-inch by 1/4-inch hollow structural section locator spigot. The plate is anchored by four 5/8-inch diameter rods positioned in 1-inch diameter holes within the cross-laminated timber panel above, complete with nuts and washers. Left and right sides of the spigot HSS wall include a 3-inch tall by full-width cut out at the base to facilitate welding access to the inside wall of the spigot. The cross-laminated timber panel itself is omitted for clarity.
CLT PANEL NOT SHOWN FOR CLARITY GL GL CUT OUT 3" TALL x FULL HSS WIDTH SECTION OF SPIGOT HSS WALL, ON THE LEFT AND RIGHT SIDES, AT THE BASE, TO FACILITATE WELDING ACCESS TO THE INSIDE WALL OF THE SPIGOT. 12"x12"x1 1/4" THK. STEEL PLATE WITH HSS 3 1/2"x3 1/2"x1/4" LOCATOR SPIGOT AS SHOWN. PLATE C/W (4) 5/8"Ø RODS IN 1"Ø HOLES WITHIN THE CLT PANEL ABOVE, WITH NUTS AND WASHERS AS SHOWN. 1' - 0" 1' - 0" TYP. 1 3/4" TYP. 1 3/4"
