A wide-flange steel column is welded to a base plate with a five-eighths inch complete-joint-penetration weld at the web and a one-inch complete-joint-penetration weld typically at the flange. The base plate features an anchor bolt configuration with five-inch edge distances and equal spacing along both the length and width axes. A central grout hole is provided in the base plate. All column welds to the base plate are specified as demand critical welds.

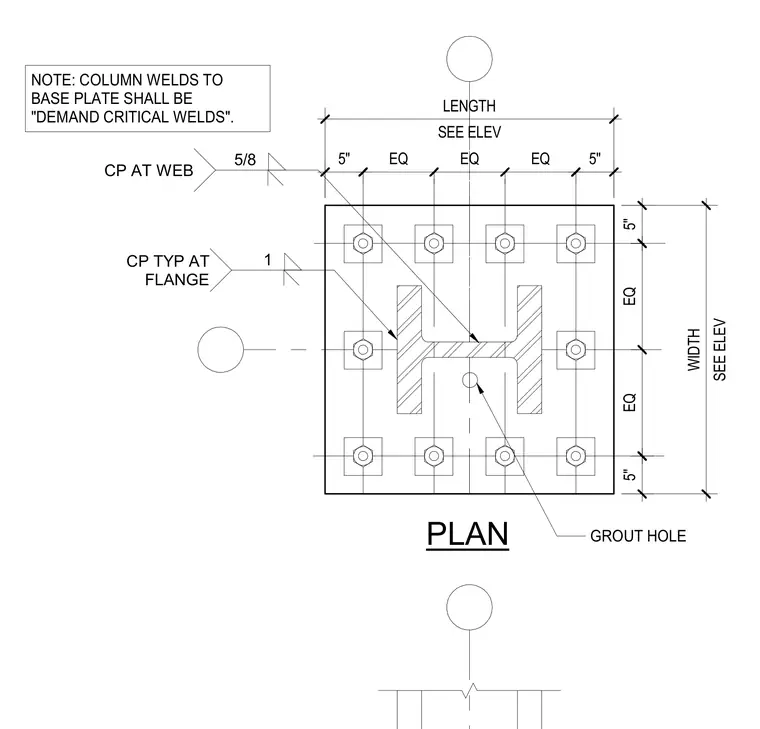

PLAN SEE ELEV WIDTH SEE ELEV LENGTH GROUT HOLE 1 CP TYP AT FLANGE NOTE: COLUMN WELDS TO BASE PLATE SHALL BE "DEMAND CRITICAL WELDS". 5/8 CP AT WEB 5" 5" EQ EQ EQ 5" 5" EQ EQ
