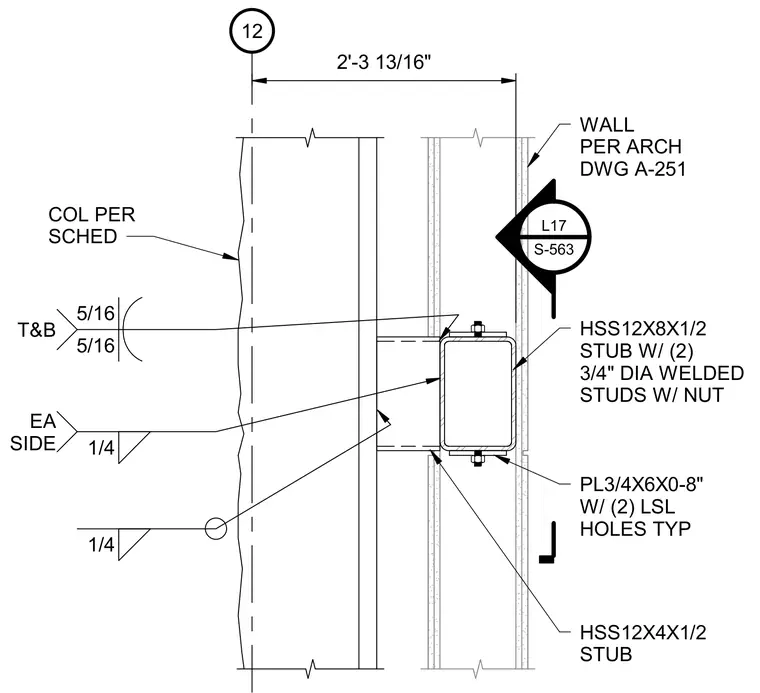

An HSS12x4x1/2 stub beam connects to a structural column per schedule using 5/16 fillet welds on the top and bottom and 1/4 fillet welds on each side. The stub extends to support an HSS12x8x1/2 member containing two 3/4-inch diameter welded studs with nuts. A 3/4-inch thick by 6-inch wide plate with two LSL holes connects typically at the assembly. The adjacent wall construction is coordinated per architectural drawing A-251.
12 L17 S-563 HSS12X4X1/2 STUB 1/4 PL3/4X6X0-8" W/ (2) LSL HOLES TYP 1/4 EA SIDE 5/16 5/16 T&B 2'-3 13/16" COL PER SCHED HSS12X8X1/2 STUB W/ (2) 3/4" DIA WELDED STUDS W/ NUT WALL PER ARCH DWG A-251
