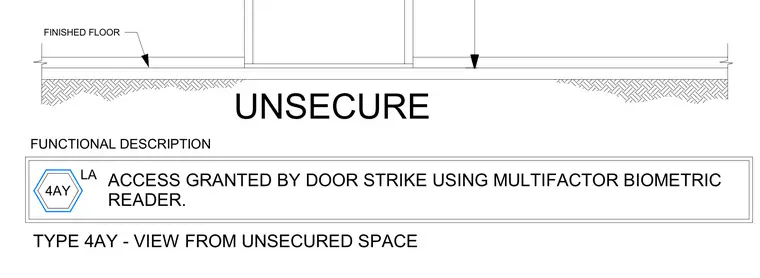

Access control integration at the door threshold viewed from the unsecured space with finished floor transition details. Access is granted by a door strike using a multifactor biometric reader designated as type 4AY.
FINISHED FLOOR ACCESS GRANTED BY DOOR STRIKE USING MULTIFACTOR BIOMETRIC READER. TYPE 4AY - VIEW FROM UNSECURED SPACE FUNCTIONAL DESCRIPTION UNSECURE 4AY LA
