Bundled Studs at Steel Beam Connection Plan

Materials

Elements

About this detail

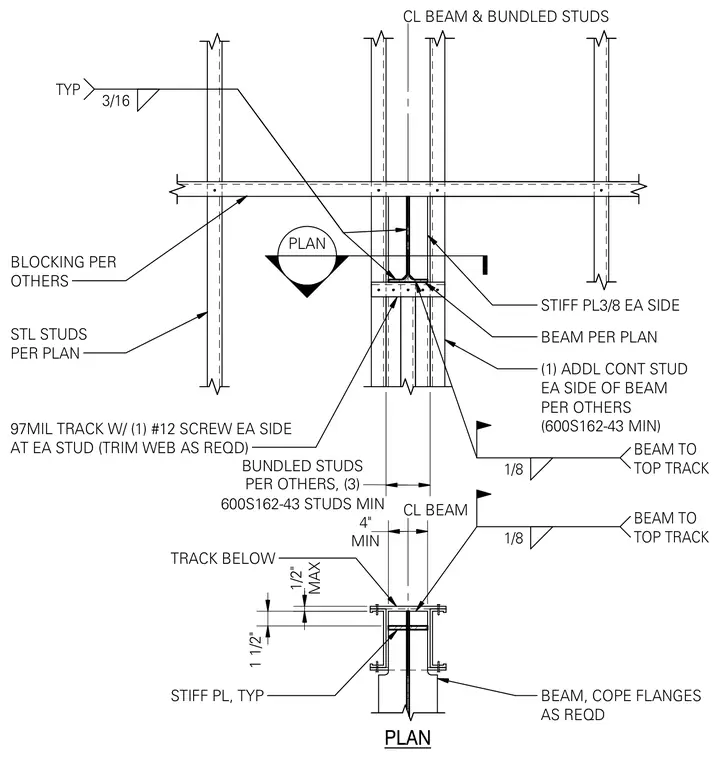

A steel beam frames into bundled cold-formed steel studs with 3/8-inch stiffener plates welded to each side of the beam web. Additional continuous 600S162-43 steel studs flank each side of the beam per plan, accompanied by blocking and 97-mil tracks fastened with one number 12 screw on each side at each stud. The beam flanges are coped as required, maintaining a minimum 4-inch clearance to bundled studs and a maximum 1/2-inch spacing at the track below. Fillet welds connect the beam to the top track and bundled studs, specified at 3/16-inch and 1/8-inch sizes.
