Steel Edge Beam Connection with Slab and Roof Deck

Materials

Steel

Elements

Beams Roofs Floors / Slabs Decks

Connections

Welded Connection

About this detail

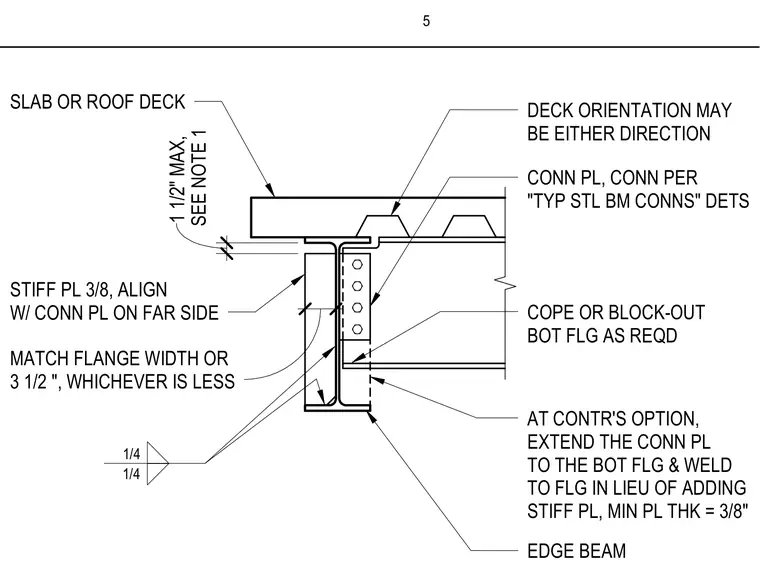

A steel edge beam supports a slab or roof deck using a connection plate with four bolts conforming to typical steel beam connection details. A three-eighths-inch stiffener plate aligns with the connection plate on the far side, sized to match the flange width or three and a half inches, whichever is less. Alternatively, the contractor may extend the connection plate to the bottom flange and weld it to the flange using a one-quarter-inch fillet weld on both sides in lieu of adding a stiffener plate, provided the minimum plate thickness is three-eighths of an inch. The bottom flange of the framing member is coped or blocked out as required to clear the connection.
