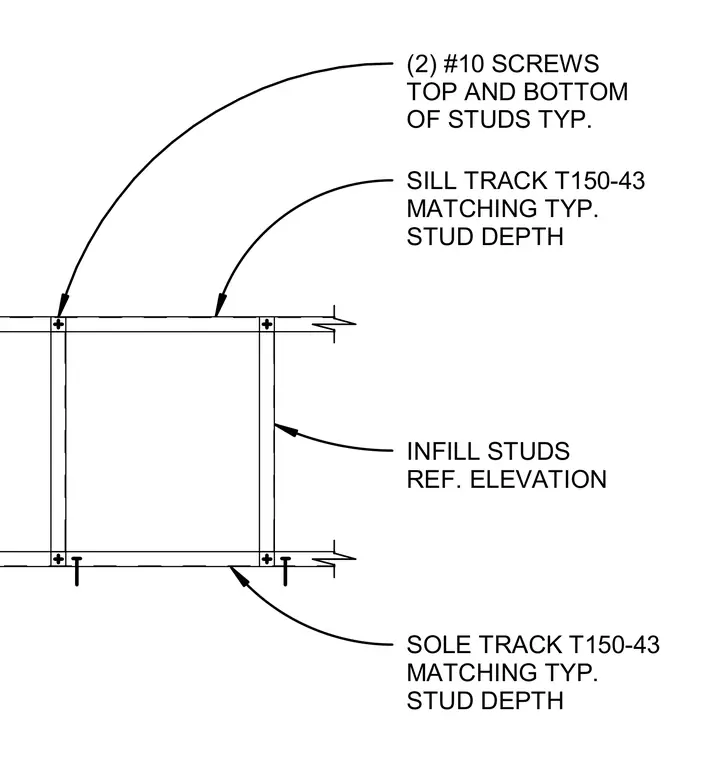

Infill studs are framed between a sill track T150-43 and a sole track T150-43 matching the typical stud depth. Two number 10 screws secure the top and bottom of each stud typically. The assembly provides structural support for cold-formed steel framing partitions or infill walls.
(2) #10 SCREWS TOP AND BOTTOM OF STUDS TYP. SILL TRACK T150-43 MATCHING TYP. STUD DEPTH INFILL STUDS REF. ELEVATION SOLE TRACK T150-43 MATCHING TYP. STUD DEPTH
