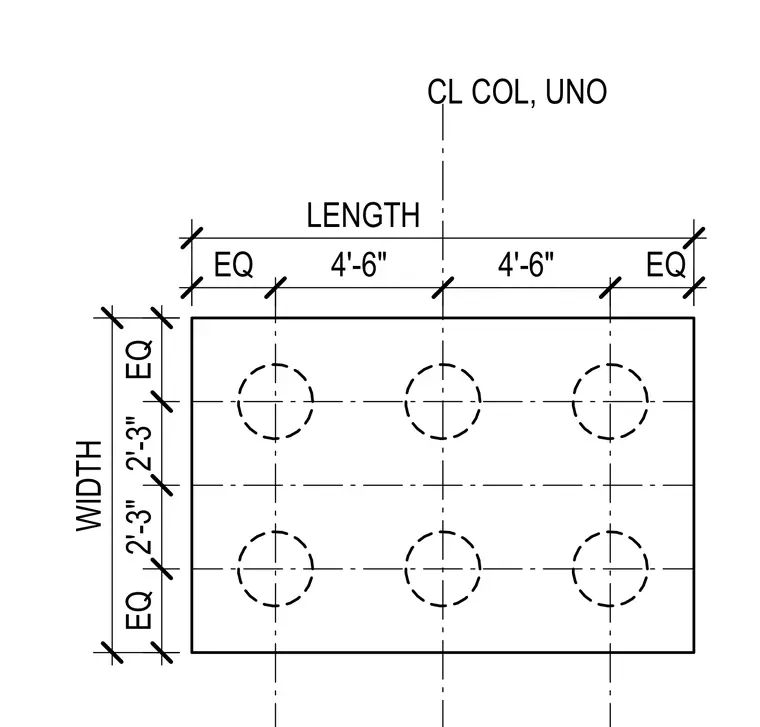

This structural plan detail shows the layout of six anchor bolts set within a rectangular base plate outline. The layout is centered on the column centerline denoted as CL COL, UNO. Dimensions include two four-foot six-inch segments along the length with equal spacing at the ends, and two two-foot three-inch spaces across the width with equal spacing at the edges.
