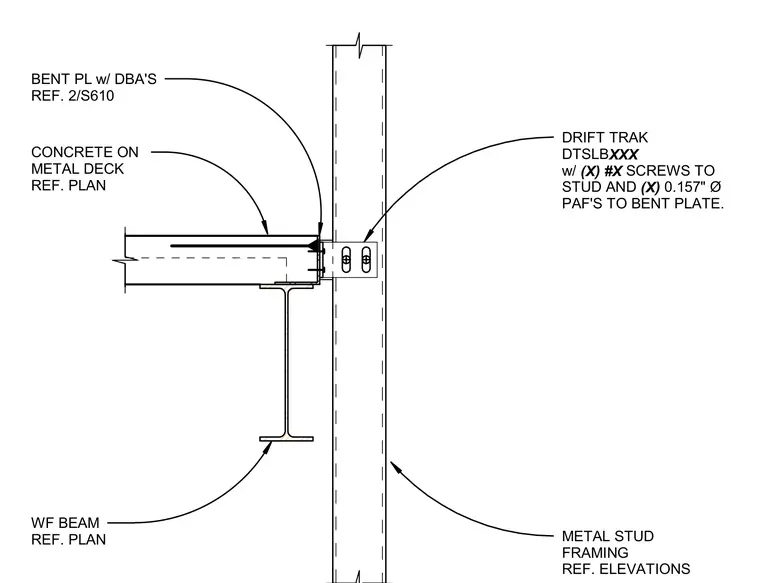

Cold-formed steel balloon framing ties back to the slab edge using a drift track secured with screws to the stud and powder-actuated fasteners to a bent plate. The bent plate with deformed bar anchors ties into the concrete on metal deck floor assembly. A wide-flange beam sits beneath the metal deck floor.
DRIFT TRAK DTSLB XXX w/ (X) #X SCREWS TO STUD AND (X) 0.157" Ø PAF'S TO BENT PLATE. METAL STUD FRAMING REF. ELEVATIONS CONCRETE ON METAL DECK REF. PLAN WF BEAM REF. PLAN BENT PL w/ DBA'S REF. 2/S610
