Structural · S-K3QP7

Typical Concrete Slab Reinforcing Layering

Elements

About this detail

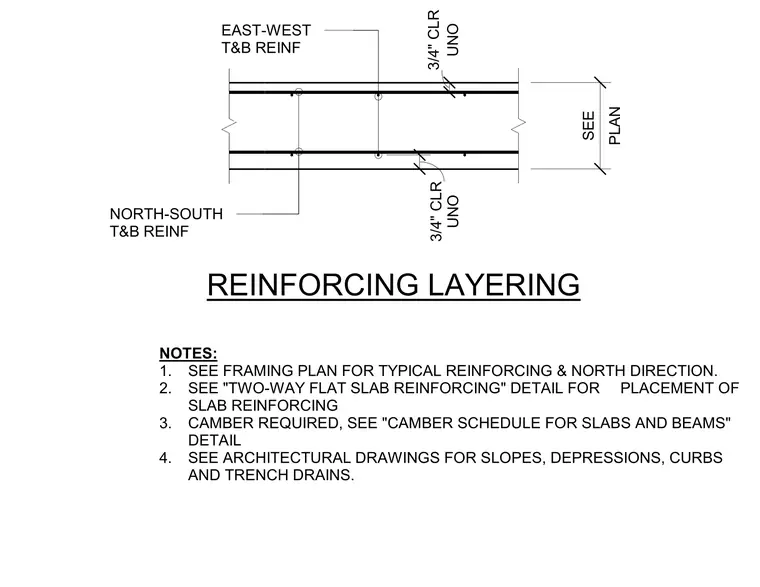

The cross section details the orthogonal layering of top and bottom reinforcing steel within a concrete slab. North-south and east-west reinforcing bars are positioned in perpendicular layers with a three-quarter-inch clear cover unless otherwise noted. Slab thickness is sized per the framing plan. Associated notes direct the builder to consult framing plans for typical reinforcing and north orientation, two-way flat slab details for bar placement, camber schedules, and architectural drawings for slopes, depressions, curbs, and trench drains.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
