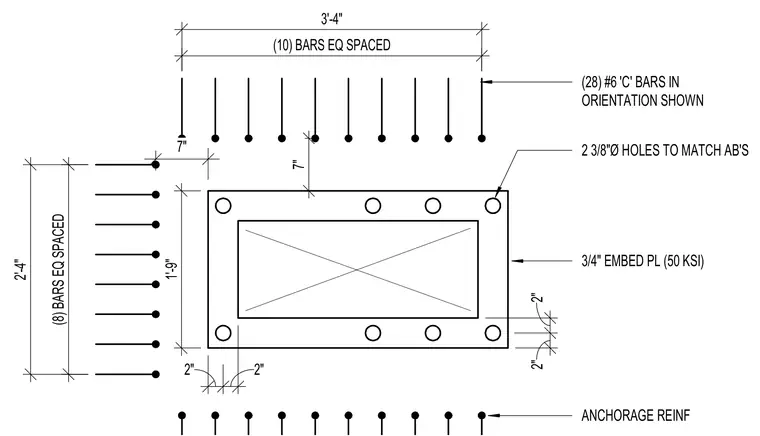

A rectangular 3/4-inch thick steel embed plate of fifty ksi steel features two and three-eighths inch diameter holes matching the anchor bolts. The plate is surrounded by anchorage reinforcing including twenty-eight number six 'C' bars placed in the specified orientation. Ten bars are equally spaced along the three-foot four-inch span, and eight bars are equally spaced along the two-foot four-inch span. Edge distances and spacing dimensions coordinate the reinforcing layout around the central embed plate.
2" 2" 2" 2" 2 3/8"Ø HOLES TO MATCH AB'S 3/4" EMBED PL (50 KSI) ANCHORAGE REINF (10) BARS EQ SPACED (8) BARS EQ SPACED 1'-9" (28) #6 'C' BARS IN ORIENTATION SHOWN 2'-4" 3'-4" 7" 7"
