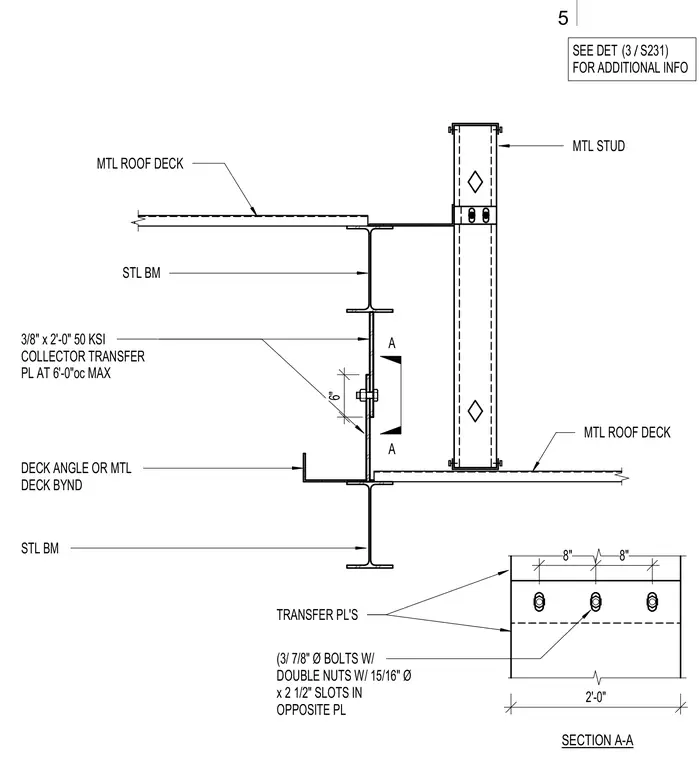

A three-eighths-inch by two-foot fifty KSI collector transfer plate connects to supporting steel beams below the metal roof deck. Three seven-eighths-inch diameter bolts with double nuts secure the transfer plates through fifteen-sixteenths-inch diameter by two-and-a-half-inch slots located in the opposite plate. A deck angle or metal deck extends beyond to frame the adjacent metal stud wall assembly. Transfer plates space at six feet on center maximum.
A A SEE DET FOR ADDITIONAL INFO / (3 S231) MTL ROOF DECK STL BM STL BM DECK ANGLE OR MTL DECK BYND MTL STUD 3/8" x 2'-0" 50 KSI COLLECTOR TRANSFER PL AT 6'-0"oc MAX MTL ROOF DECK 6" 2'-0" 8" 8" TRANSFER PL'S (3/ 7/8" Ø BOLTS W/ DOUBLE NUTS W/ 15/16" Ø x 2 1/2" SLOTS IN OPPOSITE PL SECTION A-A 5
