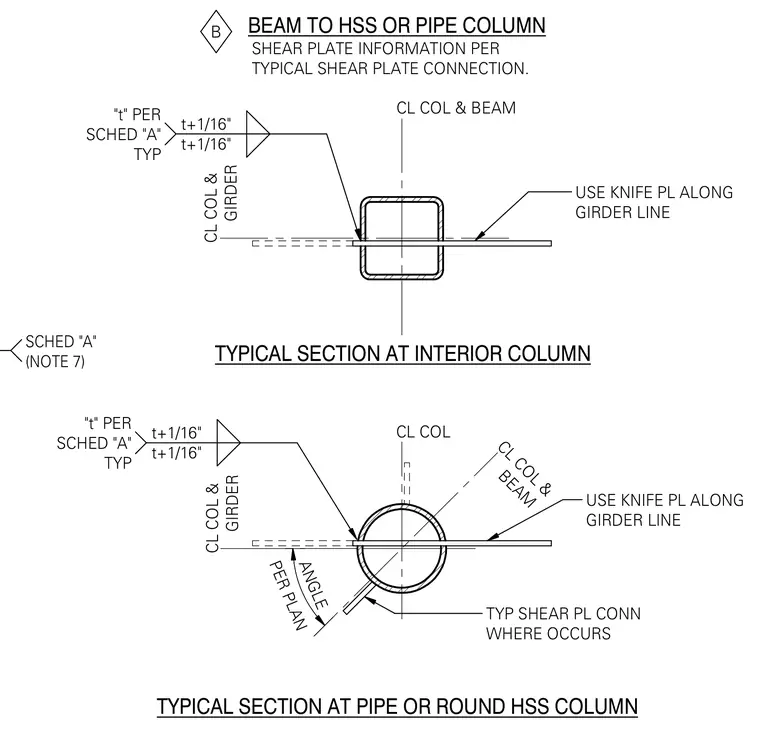

A continuous knife plate passes through the center line of both square and round hollow structural section or pipe columns along the girder line. Shear plate connections are detailed per schedule A with thicknesses matching the schedule requirements plus one-sixteenth of an inch. Additional framing angles are provided per plan where indicated at the round column detail.
BEAM TO HSS OR PIPE COLUMN SHEAR PLATE INFORMATION PER TYPICAL SHEAR PLATE CONNECTION. CL COL & BEAM USE KNIFE PL ALONG GIRDER LINE TYPICAL SECTION AT INTERIOR COLUMN CL COL USE KNIFE PL ALONG GIRDER LINE TYP SHEAR PL CONN WHERE OCCURS CL COL & BEAM PER PLAN ANGLE TYPICAL SECTION AT PIPE OR ROUND HSS COLUMN SCHED "A" (NOTE 7) CL COL & GIRDER CL COL & GIRDER "t" PER SCHED "A" TYP t+1/16" t+1/16" "t" PER SCHED "A" TYP t+1/16" t+1/16" B
