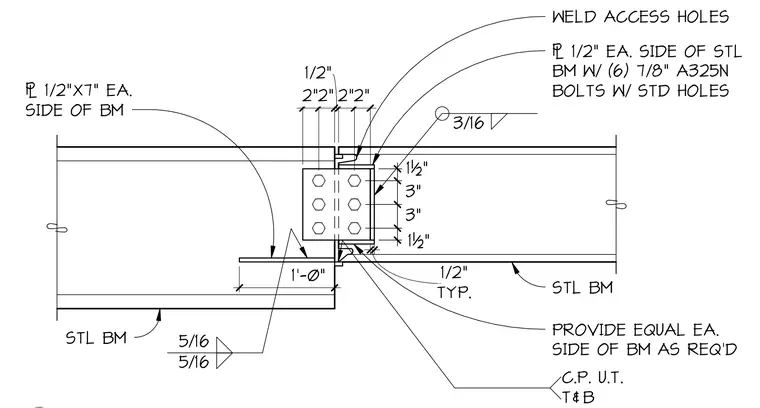

Two steel beams meet end-to-end and connect via half-inch by seven-inch steel plates attached to each side of the beam webs. Six seven-eighth-inch A325N bolts with standard holes secure the joint through the plates. Weld access holes are cut into the beam webs to facilitate the connection welds. Fillet welds of three-sixteenth-inch and five-sixteenth-inch sizes join the plates and elements as detailed. Complete joint penetration welds are applied at the top and bottom flanges.
1'-0" 1½" 3" 3" 1½" 2"2" 1/2" 2"2" 1/2"X7" EA. SIDE OF BM STL BM WELD ACCESS HOLES 1/2" EA. SIDE OF STL BM W/ (6) 7/8" A325N BOLTS W/ STD HOLES 3/16 TYP. 1/2" STL BM PROVIDE EQUAL EA. SIDE OF BM AS REQ'D 5/16 5/16 C.P. U.T. T&B
