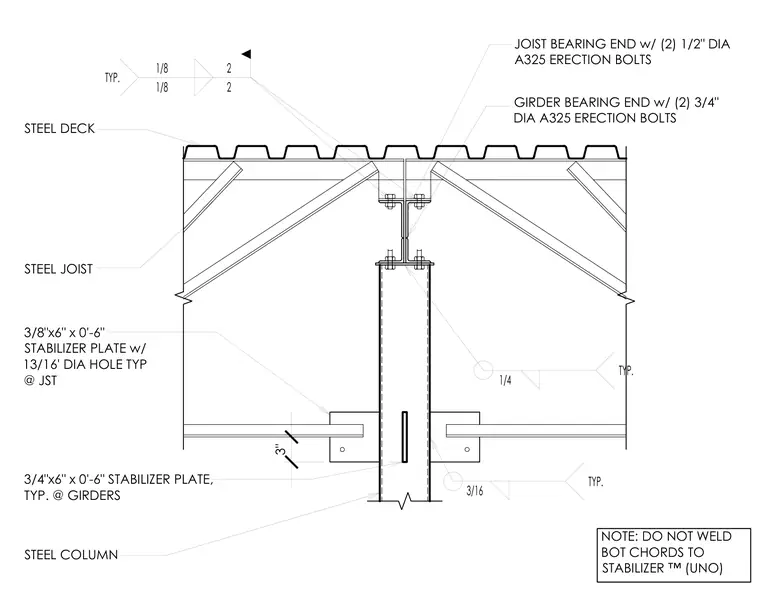

Steel joists and girders bear at a steel column in this structural connection. The steel girder bearing end connects with two three-quarter-inch diameter A325 erection bolts. The steel joist bearing end connects with two half-inch diameter A325 erection bolts. Three-quarter-inch by six-inch by zero-foot-six-inch stabilizer plates are provided at girders, while three-eighths-inch by six-inch by zero-foot-six-inch stabilizer plates with thirteen-sixteenths-inch diameter holes are used at joists. Bottom chords are left unwelded to the stabilizer plates unless noted otherwise.
STEEL COLUMN 3/4"x6" x 0'-6" STABILIZER PLATE, TYP. @ GIRDERS 3/8"x6" x 0'-6" STABILIZER PLATE w/ 13/16' DIA HOLE TYP @ JST STEEL JOIST STEEL DECK NOTE: DO NOT WELD BOT CHORDS TO STABILIZER ™ (UNO) TYP. 1/8 1/8 2 2 3" TYP. 3/16 TYP. 1/4 GIRDER BEARING END w/ (2) 3/4" DIA A325 ERECTION BOLTS JOIST BEARING END w/ (2) 1/2" DIA A325 ERECTION BOLTS
