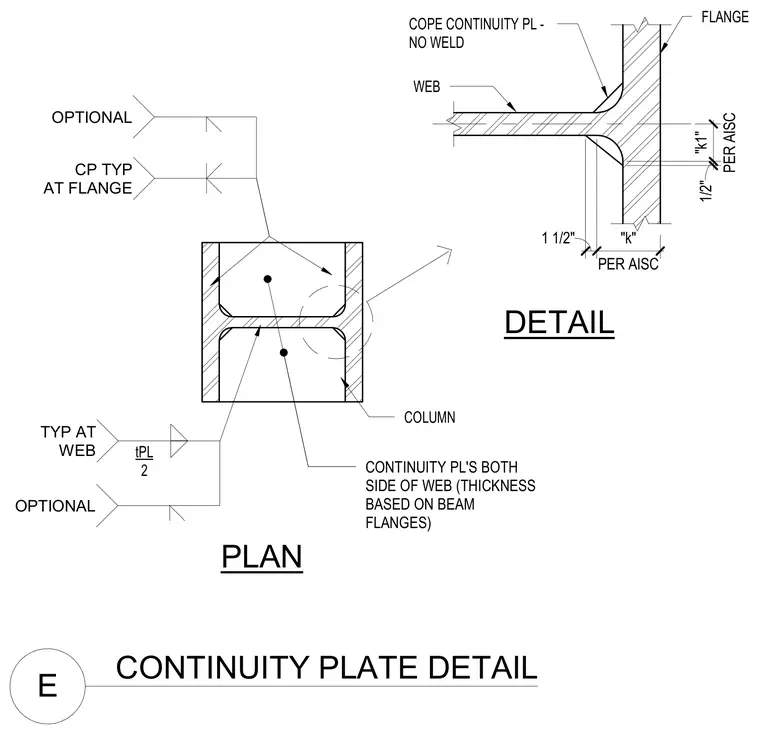

Continuity plates are positioned on both sides of a structural steel column web with a thickness based on the connecting beam flanges. A cope is provided at the continuity plate with no weld placed within one-half inch per AISC dimension k1 and one and one-half inches per AISC dimension k from the column flange. Optional welds and plate thicknesses equal to half the plate thickness are indicated at the web and flange connections.
DETAIL PLAN CONTINUITY PLATE DETAIL E COLUMN WEB FLANGE COPE CONTINUITY PL - NO WELD 1/2" PER AISC "k1" 1 1/2" PER AISC "k" CONTINUITY PL'S BOTH SIDE OF WEB (THICKNESS BASED ON BEAM FLANGES) OPTIONAL TYP AT WEB tPL 2 OPTIONAL CP TYP AT FLANGE
