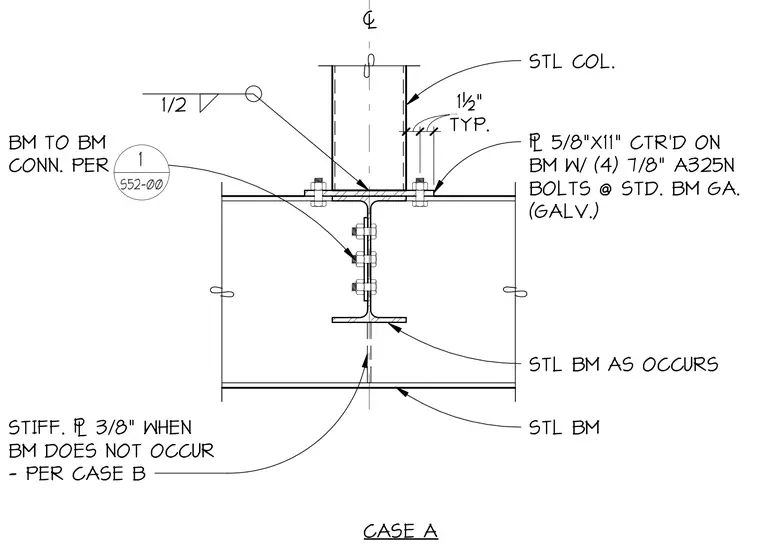

A structural steel column bears on a steel beam flange using a five-eighths-inch by eleven-inch plate centered on the beam and secured with four seven-eighths-inch A325N bolts at standard beam gauge. A one-half-inch fillet weld connects the column base to the plate. A secondary steel beam intersects the main beam with a bolted web connection. Three-eighths-inch stiffener plates are provided when the intersecting beam does not occur per Case B.
TYP. 1½" TYP. 1½" CASE A STL COL. # 5/8"X11" CTR'D ON BM W/ (4) 7/8" A325N BOLTS @ STD. BM GA. (GALV.) STL BM AS OCCURS STL BM STIFF. # 3/8" WHEN BM DOES NOT OCCUR - PER CASE B BM TO BM CONN. PER 1 S52-00 1/2
