Structural · S-K2MZY

Free Edge at EIFS / Curtain Wall

Materials

Elements

Walls Curtain Walls Floors / Slabs Expansion / Control Joints Site / Paving

About this detail

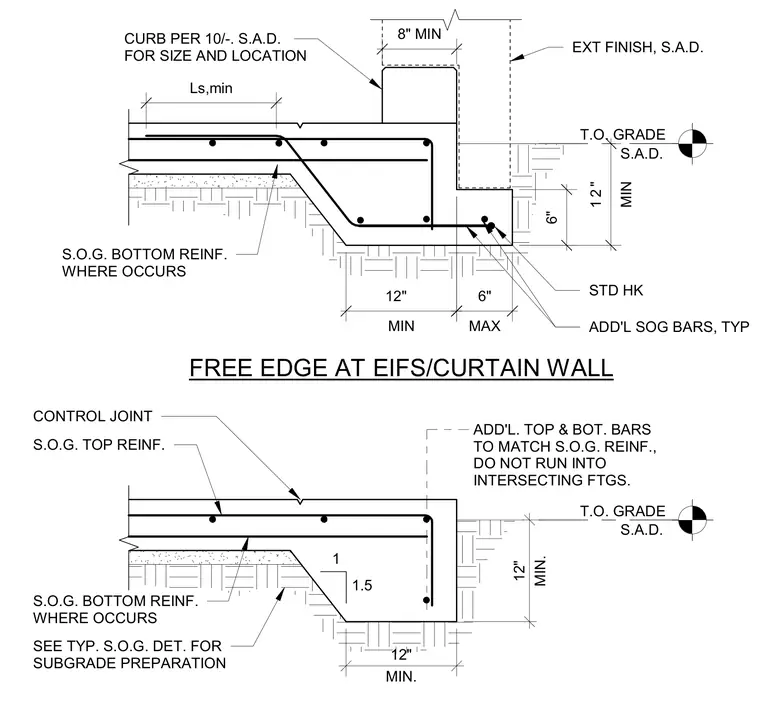

A free edge condition for a slab on grade adjacent to an exterior finish system and curtain wall. The assembly features a thickened slab edge with a minimum twelve-inch dimension, a top curb sized per architectural drawings, and standard hook reinforcing bars. Additional slab on grade bars are detailed with specified lap lengths and clearances, terminating short of intersecting footings. Subgrade preparation follows standard slab on grade details, and control joints are positioned as indicated.
