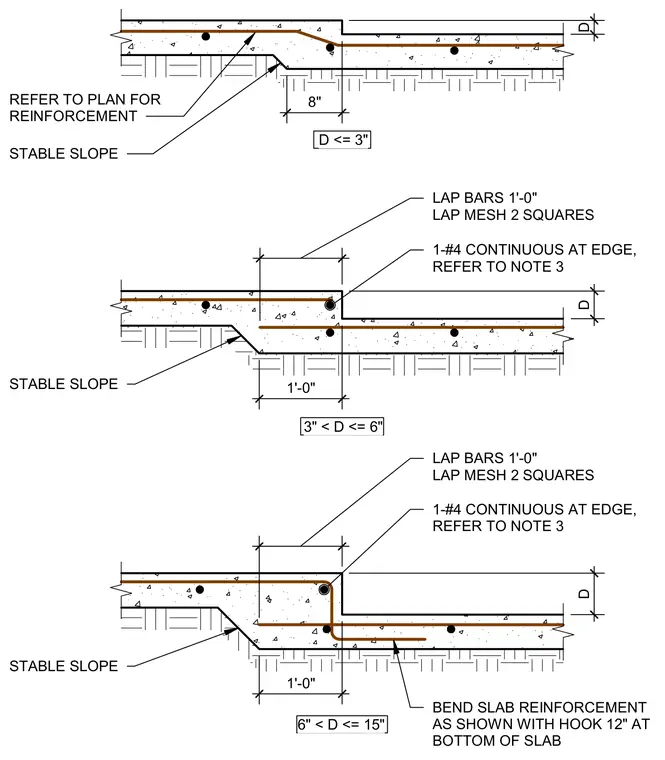

Concrete slab steps feature a stable slope transition with continuous number four rebar at the edge. Slab reinforcement laps one foot and welded wire mesh laps two squares across the step interface. Depending on the step depth dimension D, bottom reinforcement bends with a twelve-inch hook as specified for depths between six and fifteen inches. Additional reinforcement follows the structural plan across varying depth ranges.
REFER TO PLAN FOR REINFORCEMENT STABLE SLOPE 1-#4 CONTINUOUS AT EDGE, REFER TO NOTE 3 BEND SLAB REINFORCEMENT AS SHOWN WITH HOOK 12" AT BOTTOM OF SLAB STABLE SLOPE D <= 3" 3" < D <= 6" 6" < D <= 15" LAP BARS 1'-0" LAP MESH 2 SQUARES STABLE SLOPE 1-#4 CONTINUOUS AT EDGE, REFER TO NOTE 3 LAP BARS 1'-0" LAP MESH 2 SQUARES D 8" 0 D 1'-0" 0 D 1'-0"
