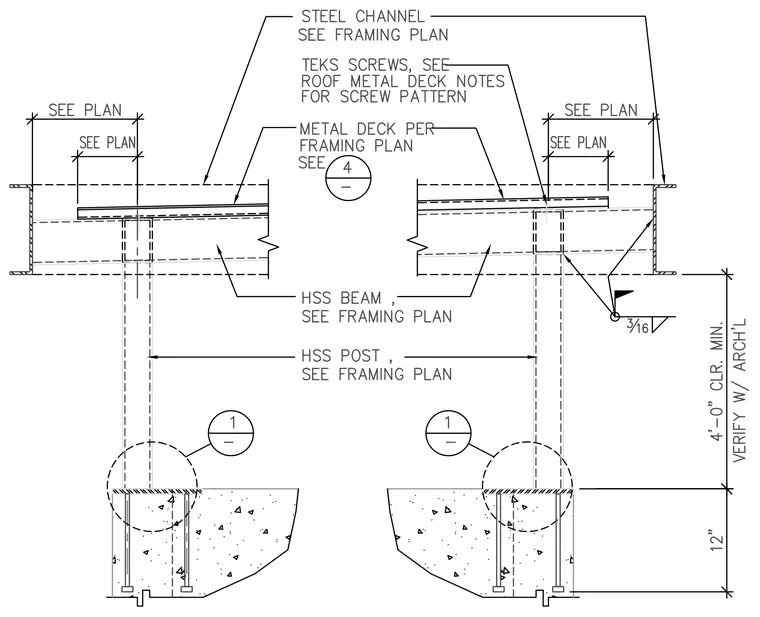

Hollow structural section posts carry hollow structural section beams sized per framing plan, which in turn support a metal roof deck fastened with self-drilling screws according to roof metal deck notes. Steel channels frame the perimeter as detailed on the framing plan. The hollow structural section posts extend down to base connections anchored within concrete footings, maintaining a 4'-0" minimum clearance verified with the architect. A field weld symbol specifies a 3/16 inch fillet weld with field weld indicator at the beam-to-support connection.
