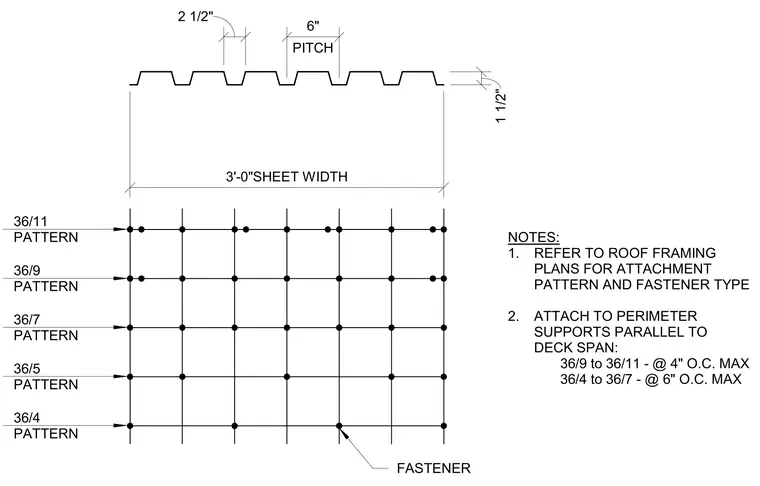

One and one-half inch deep metal roof decking with a six-inch pitch and a three-foot sheet width utilizes five distinct fastener patterns, labeled 36/4 through 36/11, to accommodate varying structural requirements. Fasteners are installed at perimeter supports parallel to the deck span at a maximum spacing of four inches on center for patterns 36/9 through 36/11, and six inches on center for patterns 36/4 through 36/7. Specific fastener types and attachment patterns must be verified against the project roof framing plans.
Text on the drawing
1 1/2" 3'-0"SHEET WIDTH 2 1/2" PITCH 6" NOTES: 1. REFER TO ROOF FRAMING PLANS FOR ATTACHMENT PATTERN AND FASTENER TYPE 2. ATTACH TO PERIMETER SUPPORTS PARALLEL TO DECK SPAN: 36/9 to 36/11 - @ 4" O.C. MAX 36/4 to 36/7 - @ 6" O.C. MAX FASTENER 36/7 PATTERN 36/9 PATTERN 36/5 PATTERN 36/4 PATTERN 36/11 PATTERN
