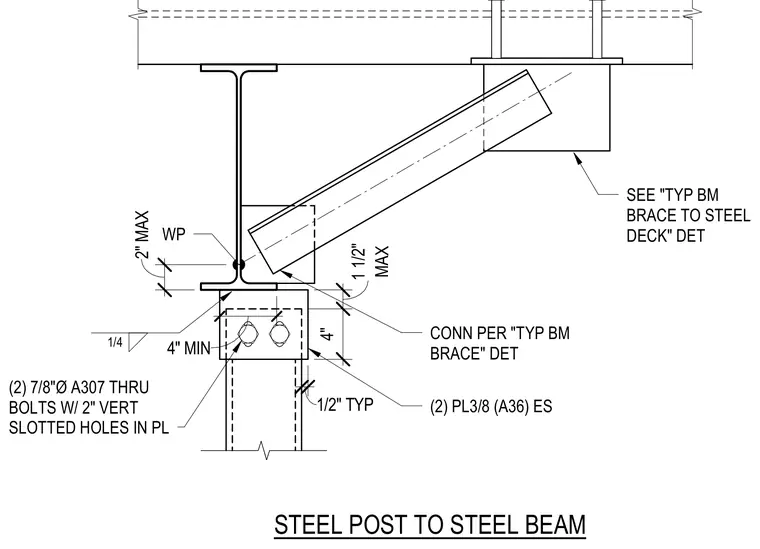

An HSS post connects to the underside of a steel beam flange using two three-eighths inch A36 plates on each side welded with a one-quarter inch fillet weld. Two seven-eighths inch diameter A307 through-bolts secure the assembly through two-inch vertical slotted holes in the plates. A diagonal brace ties into the assembly with connections per the typical beam brace details. A four-inch minimum clearance and two-inch maximum offset are maintained at the work point.
STEEL POST TO STEEL BEAM WP 2" MAX MAX 1 1/2" 4" 1/2" TYP 1/4 (2) 7/8"Ø A307 THRU BOLTS W/ 2" VERT SLOTTED HOLES IN PL (2) PL3/8 (A36) ES SEE "TYP BM BRACE TO STEEL DECK" DET CONN PER "TYP BM BRACE" DET 4" MIN
