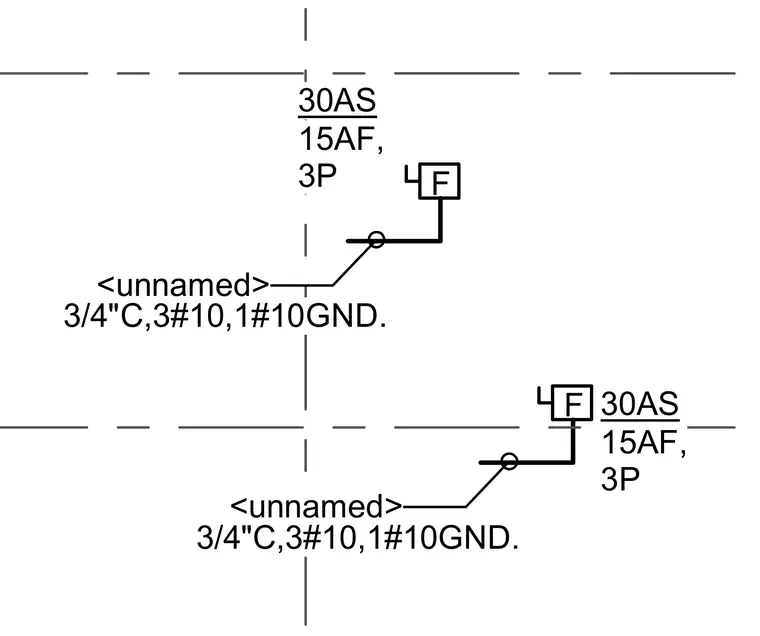

Electrical annotations indicate a three-quarter-inch conduit containing three number ten conductors and one number ten ground wire, tied to a feeder designation with thirty ampere switch and fifteen ampere fuse ratings. The symbol layout directs wiring connections within the electrical distribution system.
F F <unnamed> 30AS 15AF, 3P 3/4"C,3#10,1#10GND. <unnamed> 30AS 15AF, 3P 3/4"C,3#10,1#10GND.
