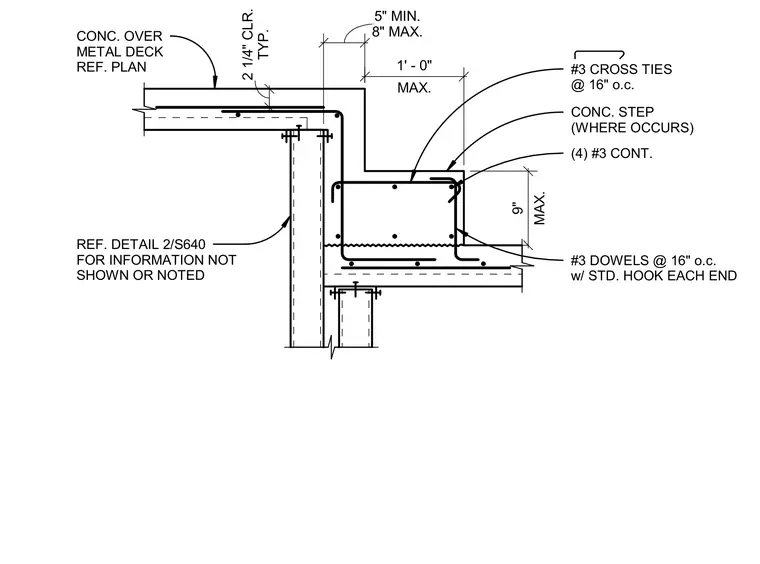

A concrete step sits on a concrete over metal deck slab with four continuous number three bars and number three cross ties spaced at sixteen inches on center. Number three dowels with standard hooks at each end tie the step assembly into the slab. A typical two and a quarter inch clearance is maintained for the reinforcing steel. Additional information is referenced to detail two on sheet S640.
TYP. 2 1/4" CLR. 8" MAX. 5" MIN. MAX. 9" MAX. 1' - 0" CONC. OVER METAL DECK REF. PLAN REF. DETAIL 2/S640 FOR INFORMATION NOT SHOWN OR NOTED #3 CROSS TIES @ 16" o.c. CONC. STEP (WHERE OCCURS) (4) #3 CONT. #3 DOWELS @ 16" o.c. w/ STD. HOOK EACH END
