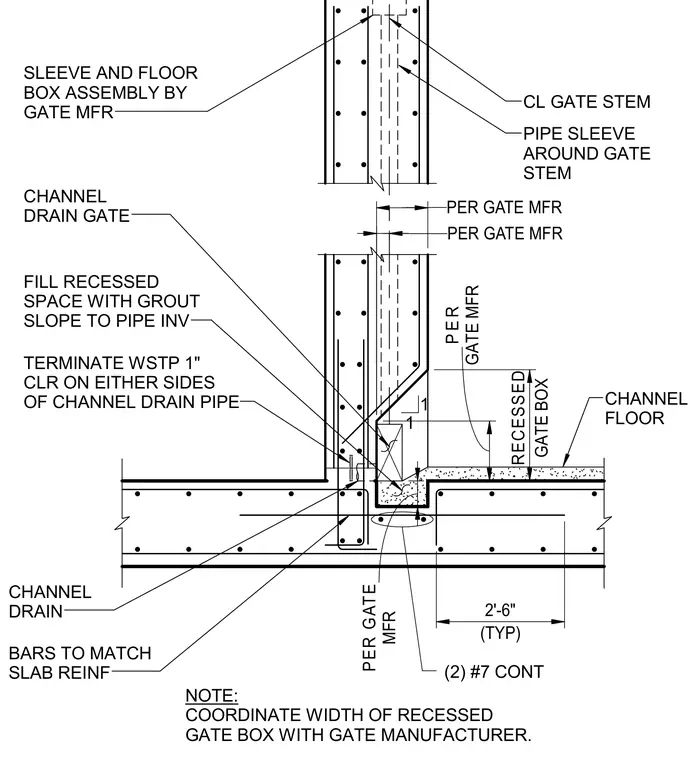

A recessed gate box and sleeve assembly are embedded within a concrete floor slab, centered on the gate stem pipe sleeve. A channel drain with a channel drain gate sits adjacent to the recessed space, with the recessed area filled with grout and sloped toward the pipe invert. Two continuous number 7 reinforcing bars run beneath the recessed gate box, matching the slab reinforcement. The width of the recessed gate box is coordinated directly with the manufacturer specifications, maintaining one-inch clear spacing on either side of the channel drain pipe.
(TYP) 2'-6" MFR PER GATE 1 1 FILL RECESSED SPACE WITH GROUT SLOPE TO PIPE INV GATE MFR P E R GATE BOX RECESSED SLEEVE AND FLOOR BOX ASSEMBLY BY GATE MFR PER GATE MFR CL GATE STEM PIPE SLEEVE AROUND GATE STEM TERMINATE WSTP 1" CLR ON EITHER SIDES OF CHANNEL DRAIN PIPE CHANNEL DRAIN GATE CHANNEL DRAIN CHANNEL FLOOR BARS TO MATCH SLAB REINF NOTE: COORDINATE WIDTH OF RECESSED GATE BOX WITH GATE MANUFACTURER. PER GATE MFR (2) #7 CONT
