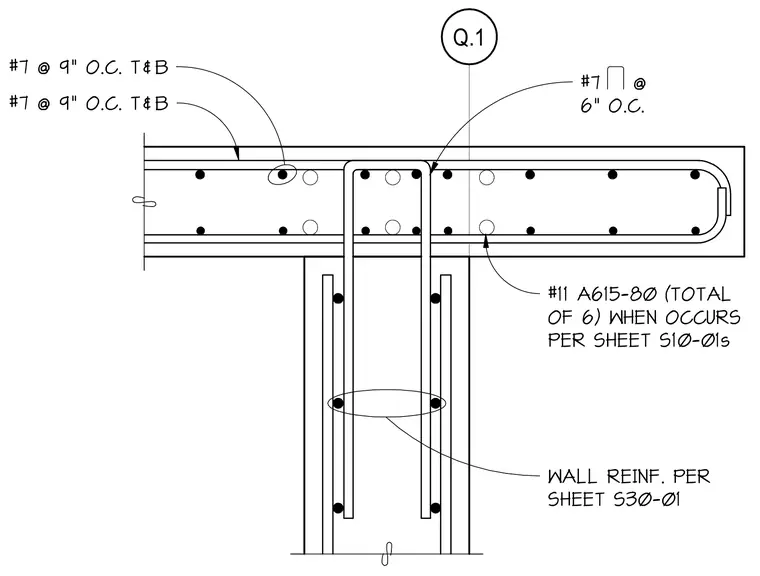

A concrete wall intersects another concrete wall with specific reinforcing bar configurations. The vertical wall contains wall reinforcement per sheet S30-01. The horizontal member includes number 7 bars at 9 inches on center top and bottom, alongside number 11 A615 grade 80 bars totaling 6 when occurring per sheet S10-01s. Number 7 hairpin bars are spaced at 6 inches on center across the intersection.
Q.1 WALL REINF. PER SHEET S30-01 #7 @ 6" O.C. #7 @ 9" O.C. T&B #7 @ 9" O.C. T&B #11 A615-80 (TOTAL OF 6) WHEN OCCURS PER SHEET S10-01s
