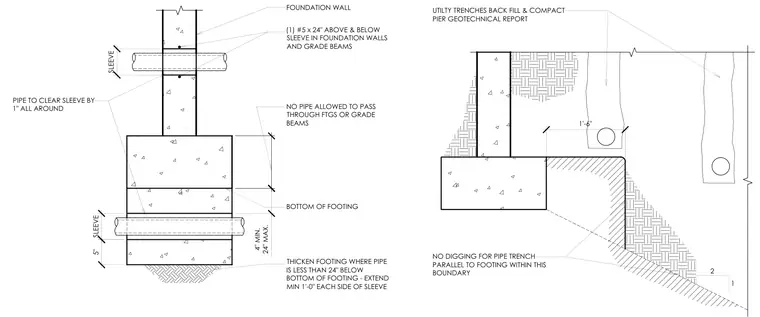

A pipe penetrates the concrete foundation wall and footing through a sleeve with a minimum one-inch clearance all around. Reinforcement consists of one number five bar by twenty-four inches long placed both above and below the sleeve in foundation walls and grade beams. Footings are thickened where the pipe is less than twenty-four inches below the bottom of the footing, extending a minimum of one foot on each side of the sleeve. Utility trenches must be backfilled and compacted per geotechnical recommendations, with no digging allowed for pipe trenches parallel to the footing within the designated boundary.
PIPE TO CLEAR SLEEVE BY 1" ALL AROUND FOUNDATION WALL (1) #5 x 24" ABOVE & BELOW SLEEVE IN FOUNDATION WALLS AND GRADE BEAMS NO PIPE ALLOWED TO PASS THROUGH FTGS OR GRADE BEAMS BOTTOM OF FOOTING THICKEN FOOTING WHERE PIPE IS LESS THAN 24" BELOW BOTTOM OF FOOTING - EXTEND MIN 1'-0" EACH SIDE OF SLEEVE NO DIGGING FOR PIPE TRENCH PARALLEL TO FOOTING WITHIN THIS BOUNDARY UTILTY TRENCHES BACK FILL & COMPACT PIER GEOTECHNICAL REPORT 2 1 5" SLEEVE 4" MIN. 24" MAX. SLEEVE 1'-6"
