HSS Guiderail Support Column Connection at Steel Beam and Concrete Slab

Materials

Concrete Steel Metal (misc.)

Elements

Beams Decks Bracing Connections / Plates

Connections

Gusset Plate HSS Connection Bracing Connection Bolted Connection Expansion / Slip Connection

About this detail

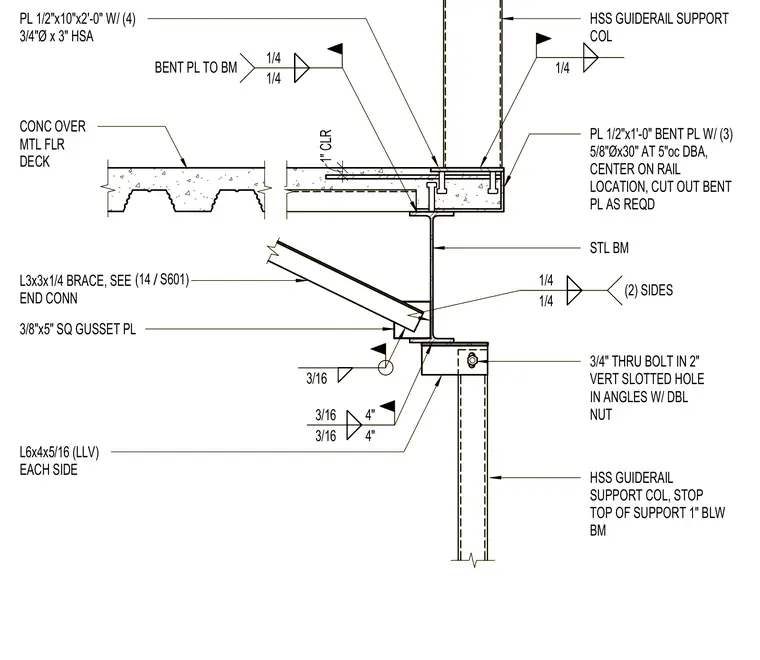

A hollow structural section guiderail support column terminates one inch below a steel floor beam and connects via a half-inch thick base plate secured with four three-quarter-inch diameter heavy stud anchors embedded in a concrete over metal floor deck. A half-inch bent plate with three five-eighths-inch diameter deformed bar anchors at five inches on center centers the rail location. A structural steel beam supports the assembly, featuring an angle brace made from L3x3x1/4 angles attached with a three-eighths-inch by five-inch square gusset plate welded on two sides with quarter-inch fillet welds. Additional L6x4x5/16 angles are mounted on each side using three-sixteenths-inch fillet welds, incorporating three-quarter-inch through-bolts in two-inch vertical slotted holes with double nuts.
