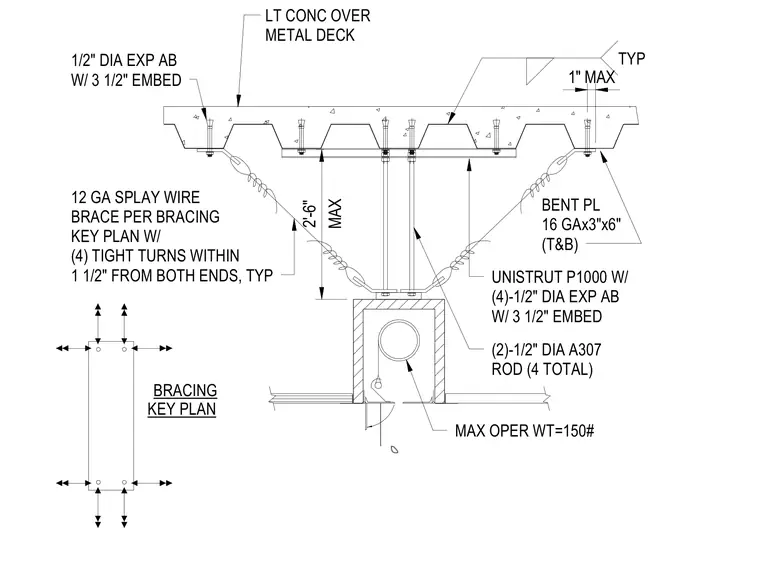

A recessed projection screen with a maximum operating weight of 150 pounds is suspended below a lightweight concrete over metal deck floor slab. The assembly hangs from a Unistrut P1000 channel secured to the concrete deck with four 1/2-inch diameter expansion anchor bolts having a 3 1/2-inch embedment. Two pairs of 1/2-inch diameter A307 rods connect the screen housing to bent plates (16 gauge by 3 inches by 6 inches) at the top and bottom. Four 12-gauge splay wire braces provide lateral seismic support, featuring four tight turns within 1 1/2 inches from both ends per the bracing key plan.
(2)-1/2" DIA A307 ROD (4 TOTAL) BENT PL 16 GAx3"x6" (T&B) 1/2" DIA EXP AB W/ 3 1/2" EMBED 12 GA SPLAY WIRE BRACE PER BRACING KEY PLAN W/ (4) TIGHT TURNS WITHIN 1 1/2" FROM BOTH ENDS, TYP BRACING KEY PLAN MAX OPER WT=150# UNISTRUT P1000 W/ (4)-1/2" DIA EXP AB W/ 3 1/2" EMBED TYP 1" MAX LT CONC OVER METAL DECK MAX 2'-6"
